Pulse Generator Kit

Description:

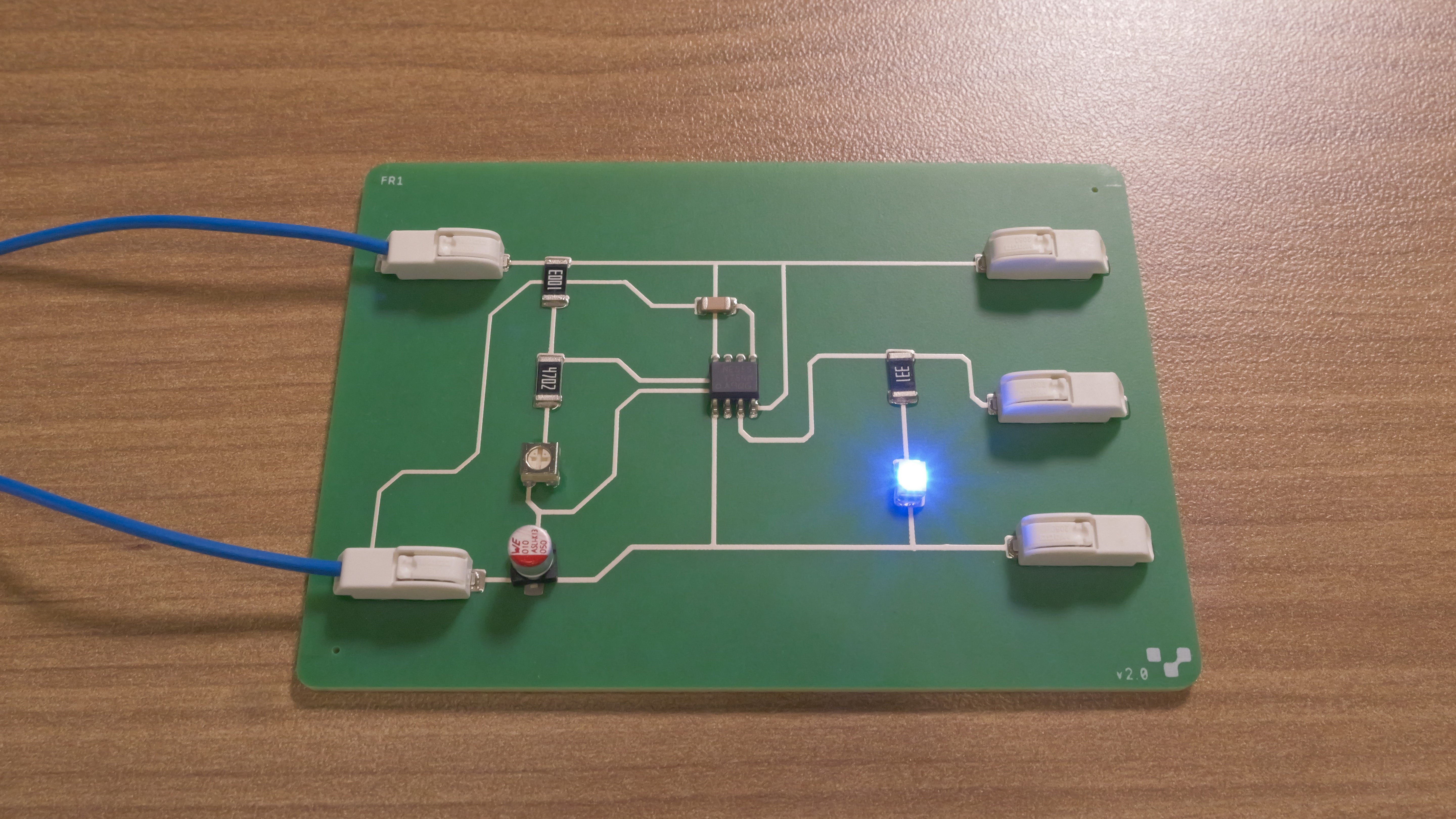

Learn about oscillators, timing circuits, and waveform generation with this hands-on project. You’ll create a pulse generator circuit that outputs an adjustable square wave using the classic 555 timer IC. A trimmer potentiometer lets you easily tune the output frequency, providing a versatile clock or control signal for driving other circuits.

Great for students, hobbyists, and educators, this kit not only demonstrates fundamental electronics concepts but also provides a practical tool to power or synchronize other digital projects. This project is ideal for learning about simple circuits and leveling up your V-One skills. The included components ensure stable operation and easy connectivity to external boards

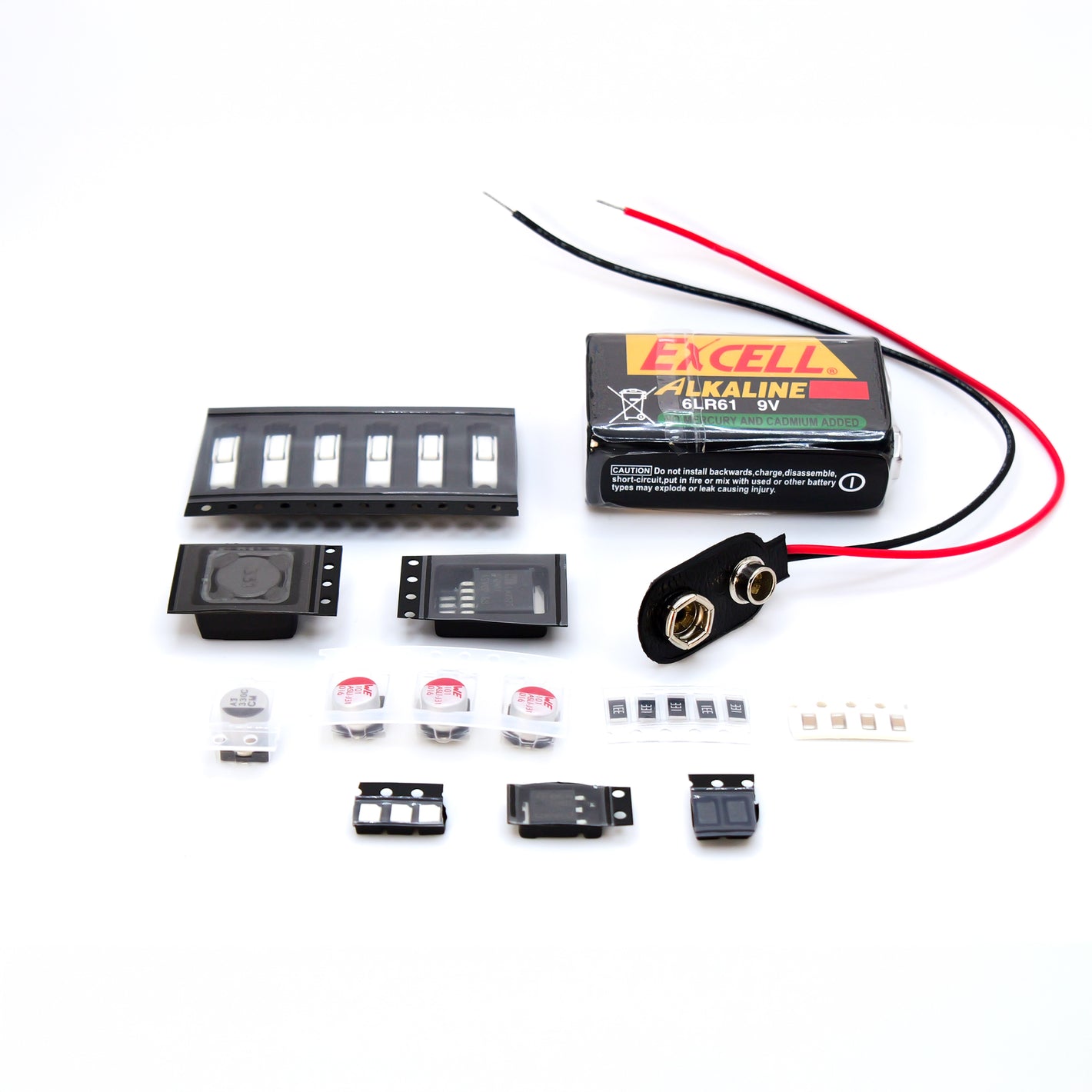

Note: This circuit is designed to work in series with other circuit boards. Check out the voltage regulator project (recommended for the pulse generator to work) and the 99 decimal counter project (uses the pulse generator to work) for projects that connect to this board.

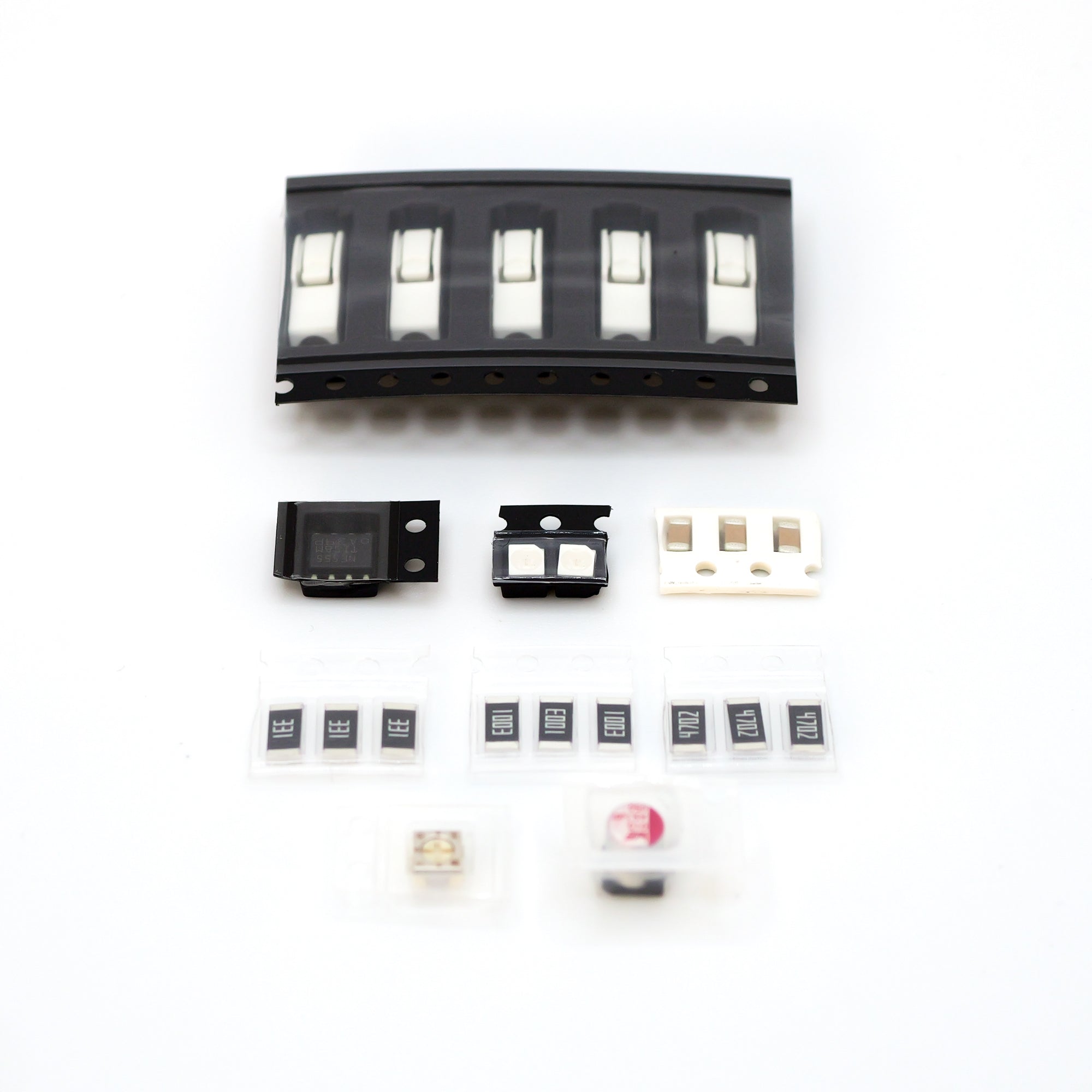

What's included:

• 1× - NE555 IC
• 1× - Blue LED
• 1× - 100 kΩ resistors
• 1× - 47 kΩ resistors
• 1× - 330Ω resistors
• 1× - 0.1 µF rapacitor
• 1× - 1 MΩ trimming potentiometer
• 1× - 1 µF capacitor
• 5× - Wire connector

Also Needed:

• A blank 2" x 3" or 3” x 4” FR1 board
• Conductor 3
• Solder Paste
• Nozzles

Resources:

• Pulse generator tutorial
