Voltera V-One

Description

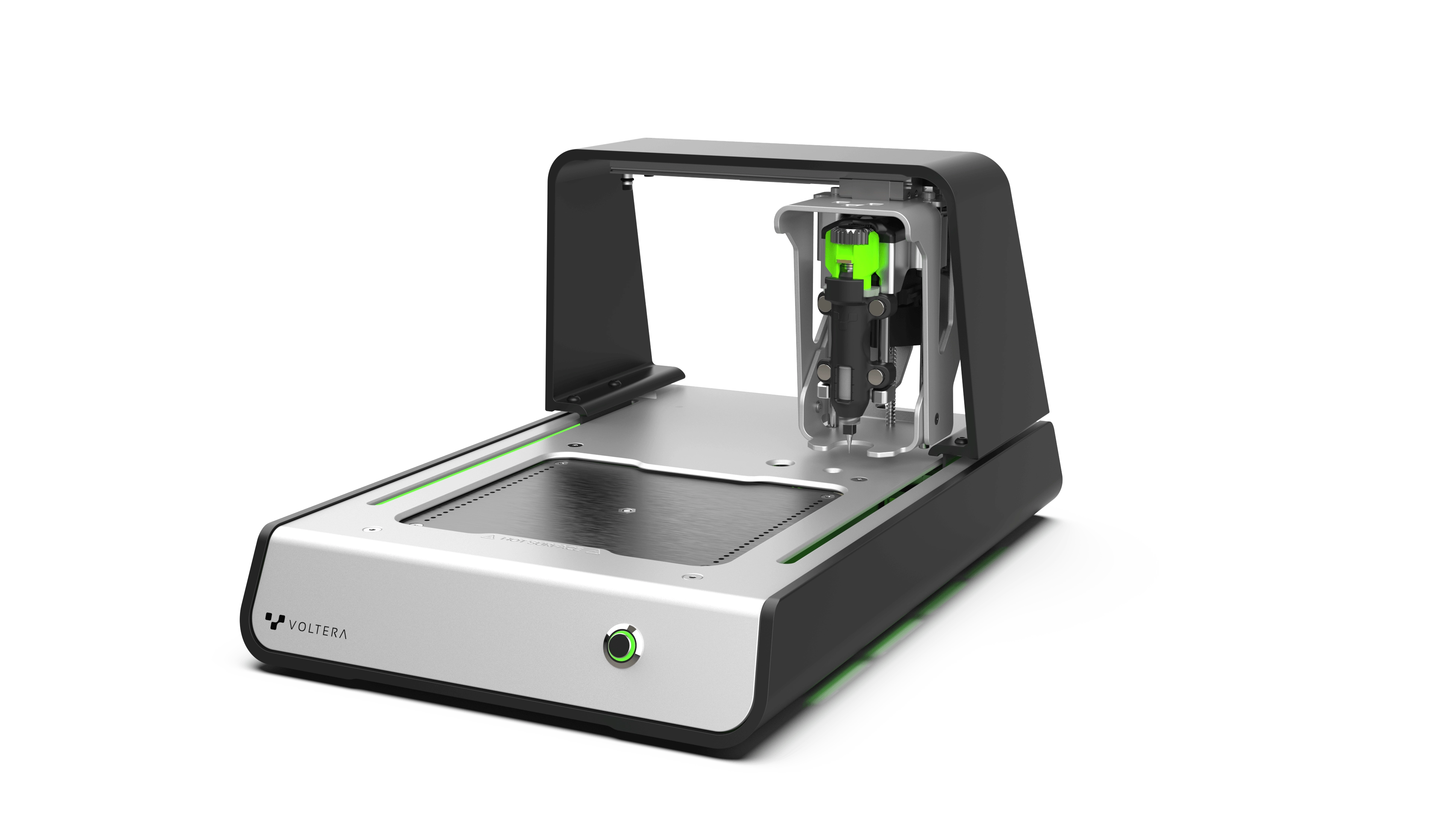

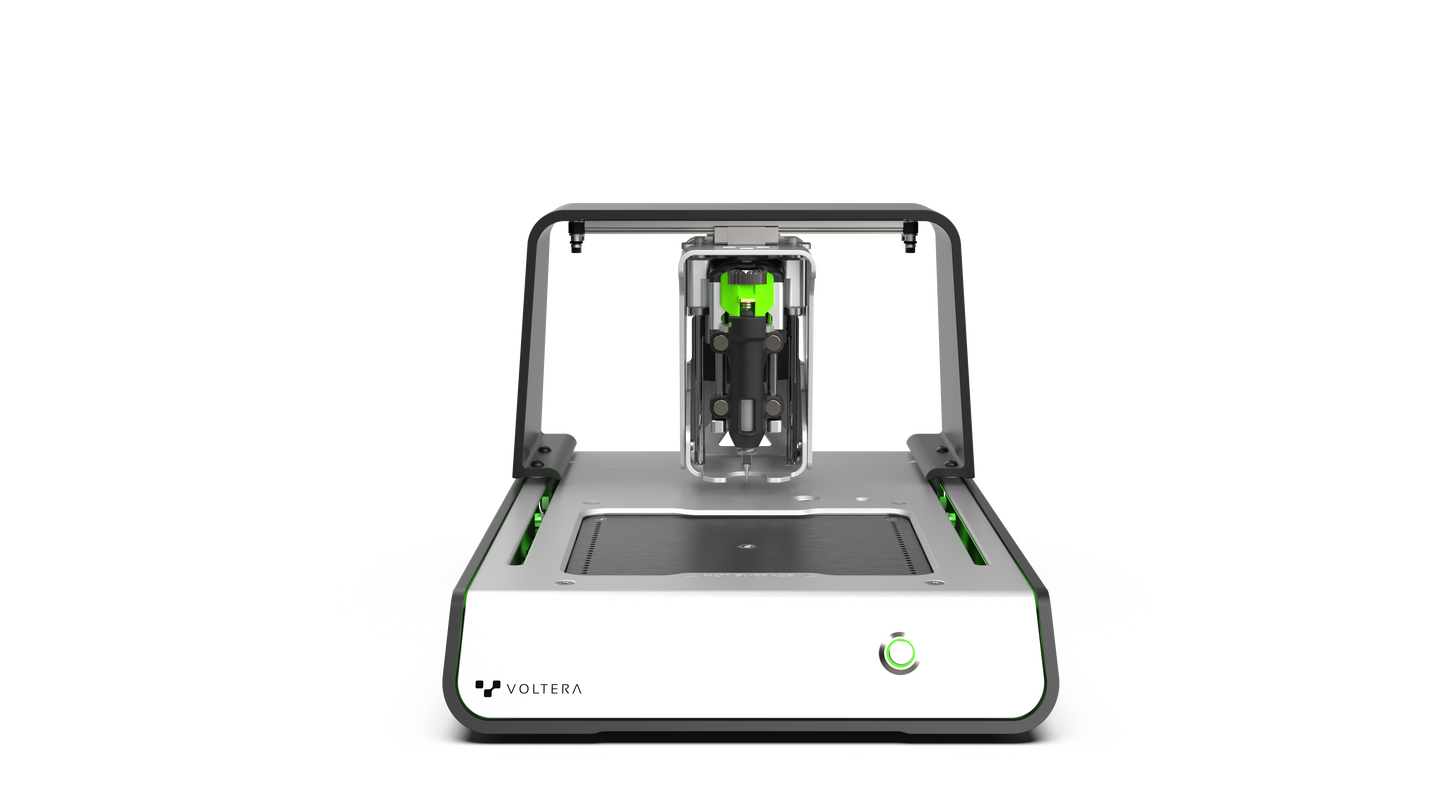

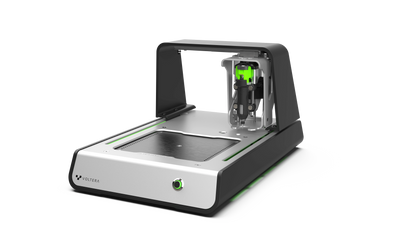

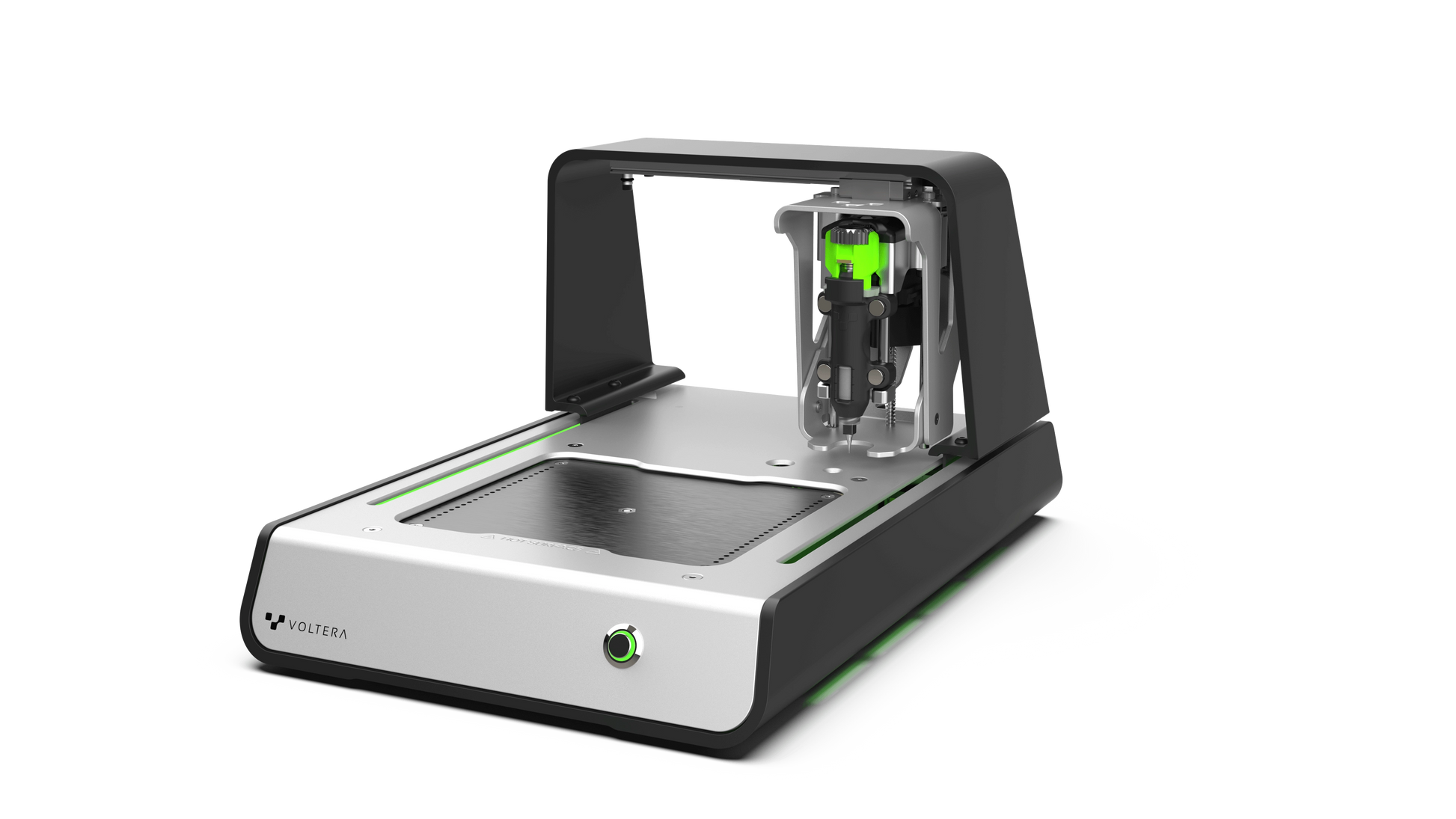

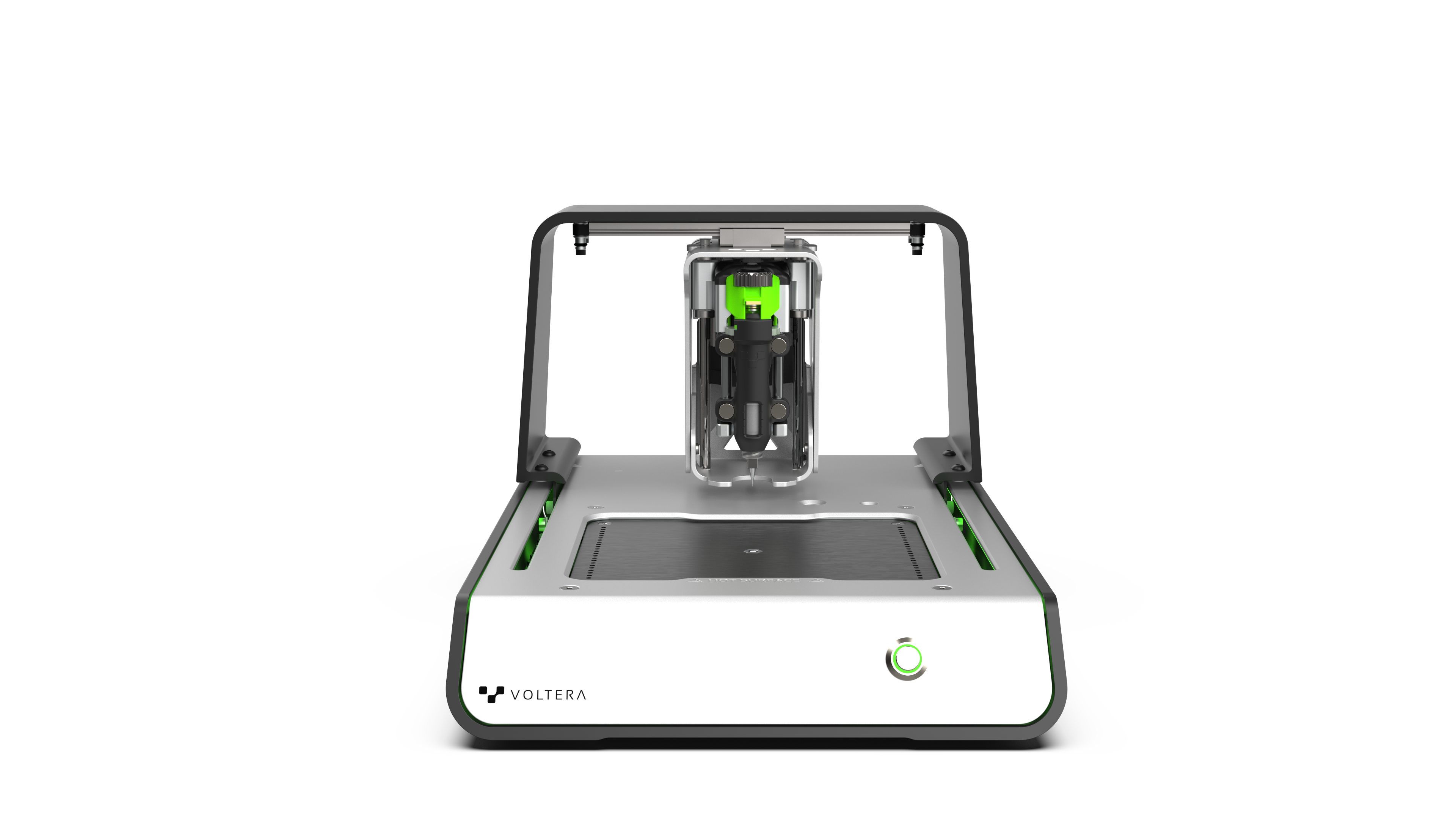

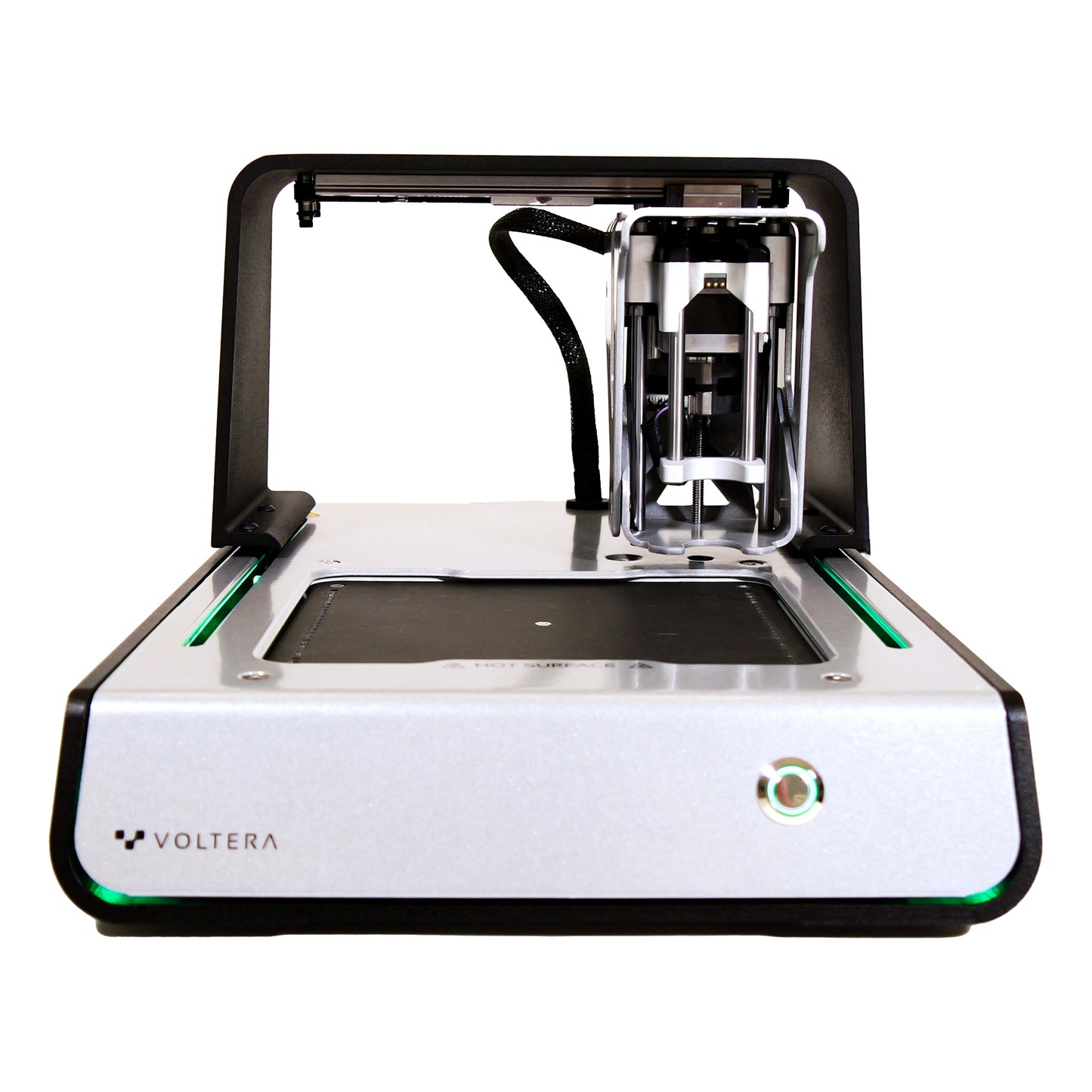

The Voltera V-One is a desktop-sized dispensing system for PCB printing. Import your Gerber file into the Voltera software, press print, and the V-One will bring your board to life. Use the solder paste dispensing and reflow features to mount components onto your printed board, or mount components on a prefabricated board with ease.

What's included

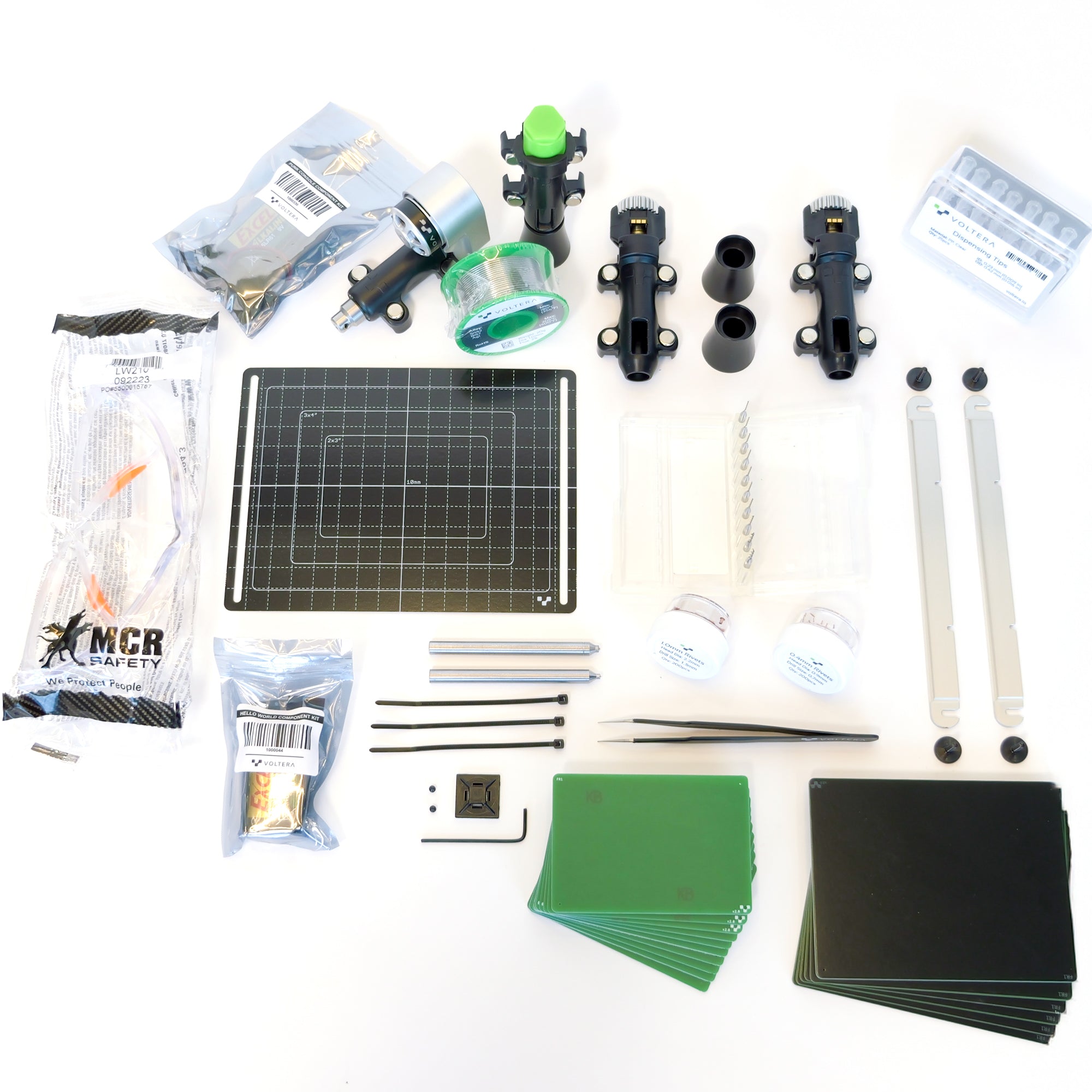

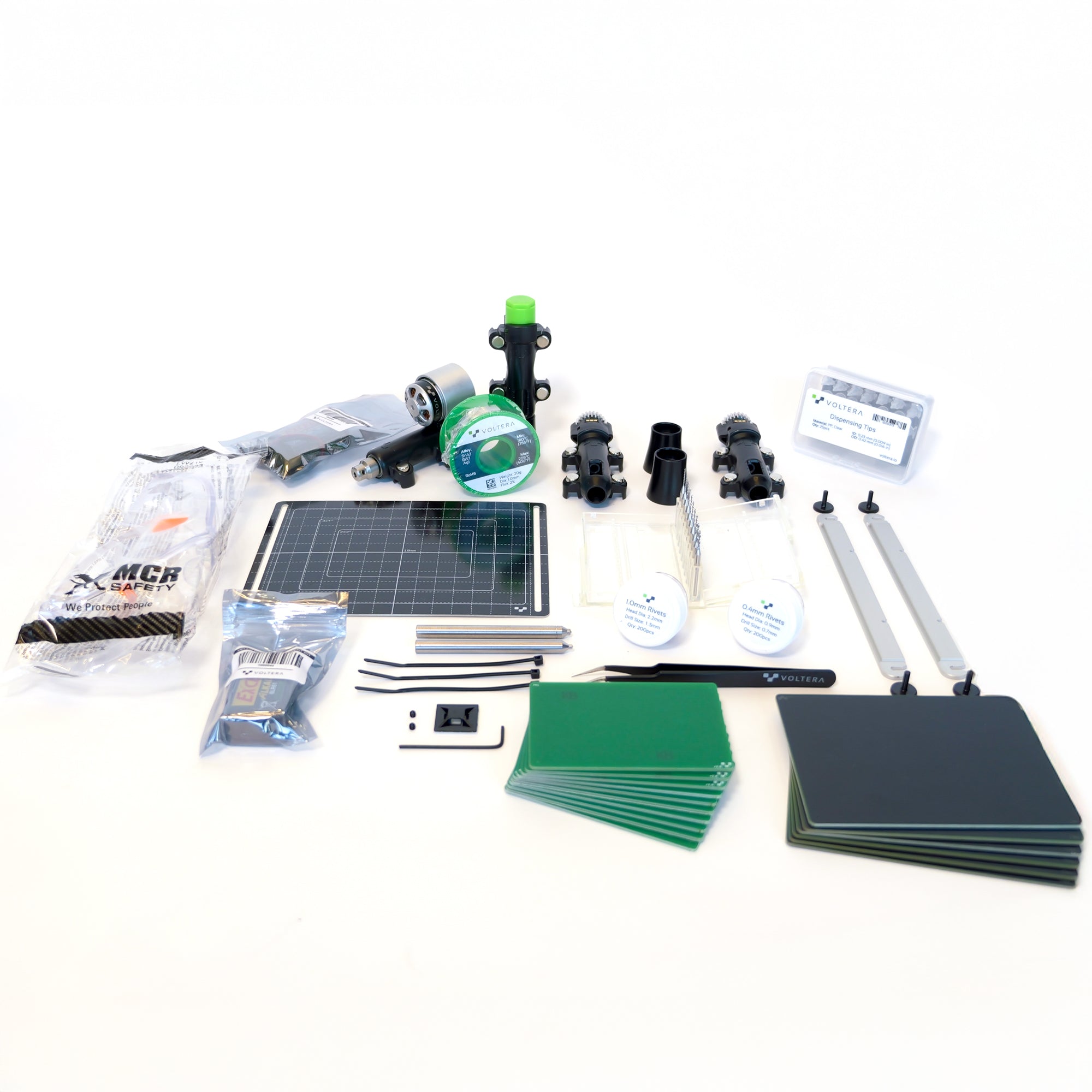

The V-One includes all the accessories you need to get started. Here's what you'll find in the box:

• V-One

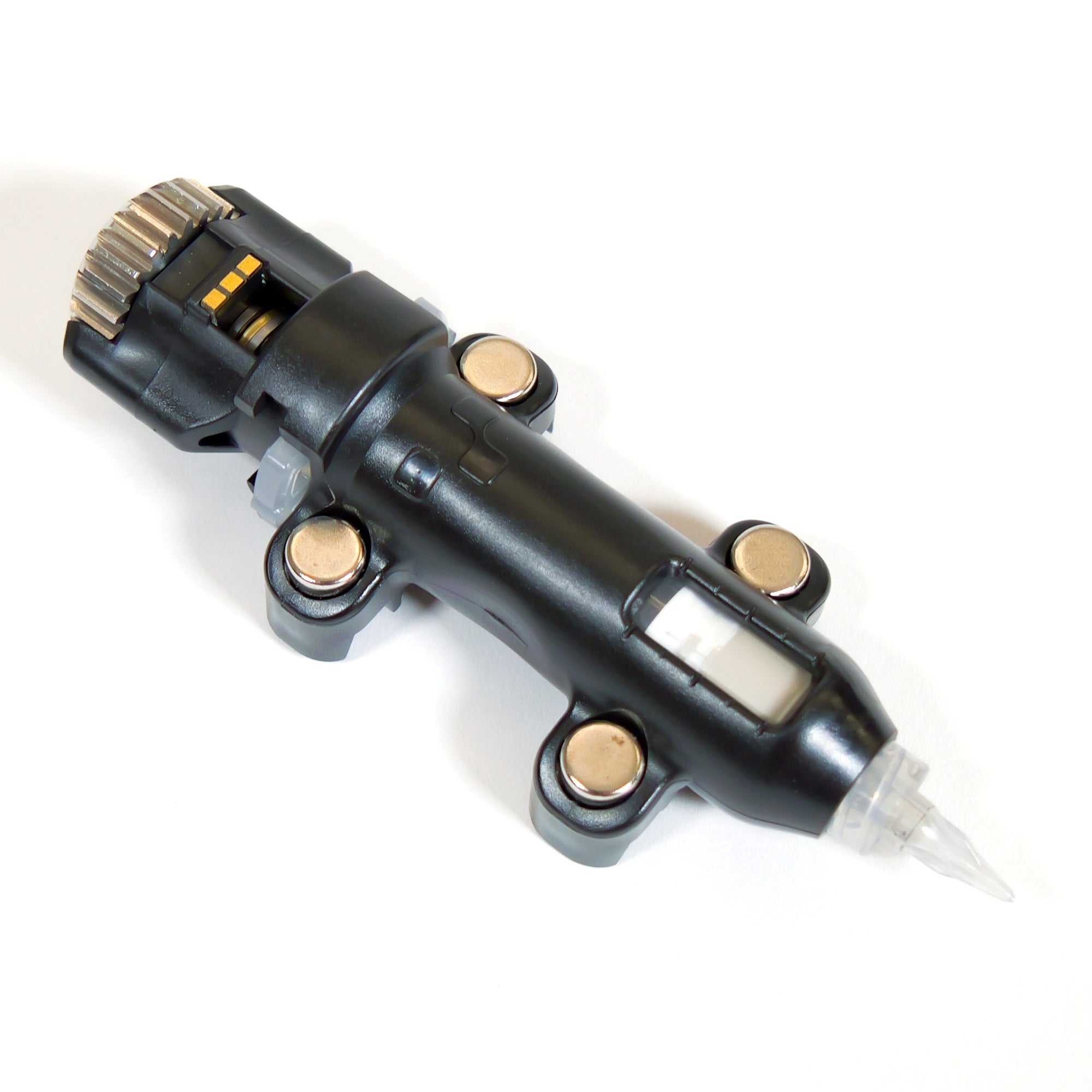

• V-One dispenser

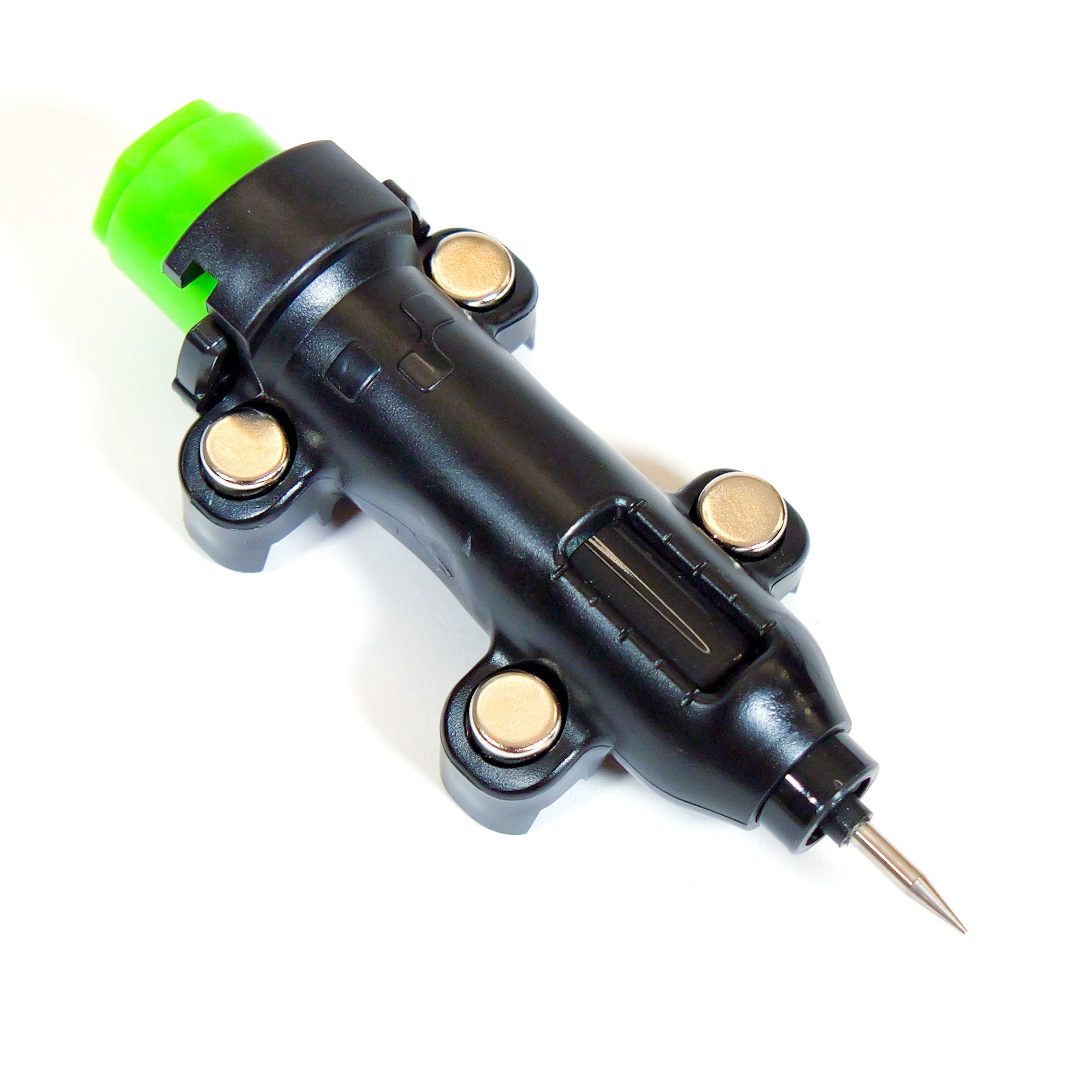

• V-One probe
• Nozzle pack
• Tip caps
• 3” x 4” FR1 substrate pack
• 2” x 3” FR1 substrate pack
• Substrate clamps
• Thumbscrew pack
• Hello world Kit
• Solder wire
• Tweezers
• Plus the necessary power supply, power adapter, cables, and user guides

*Ink and solder paste shipped separately.

Drill Attachment (Optional)

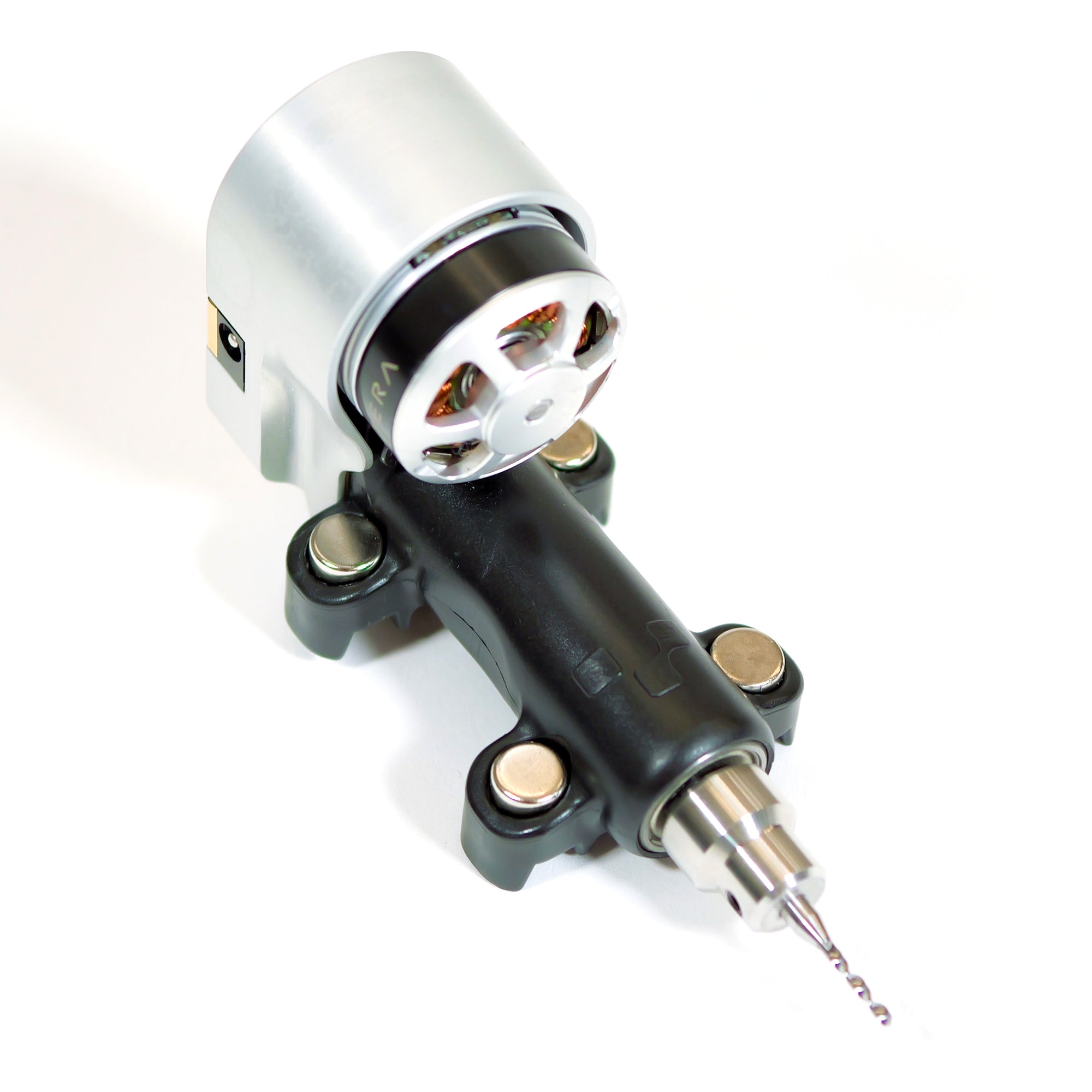

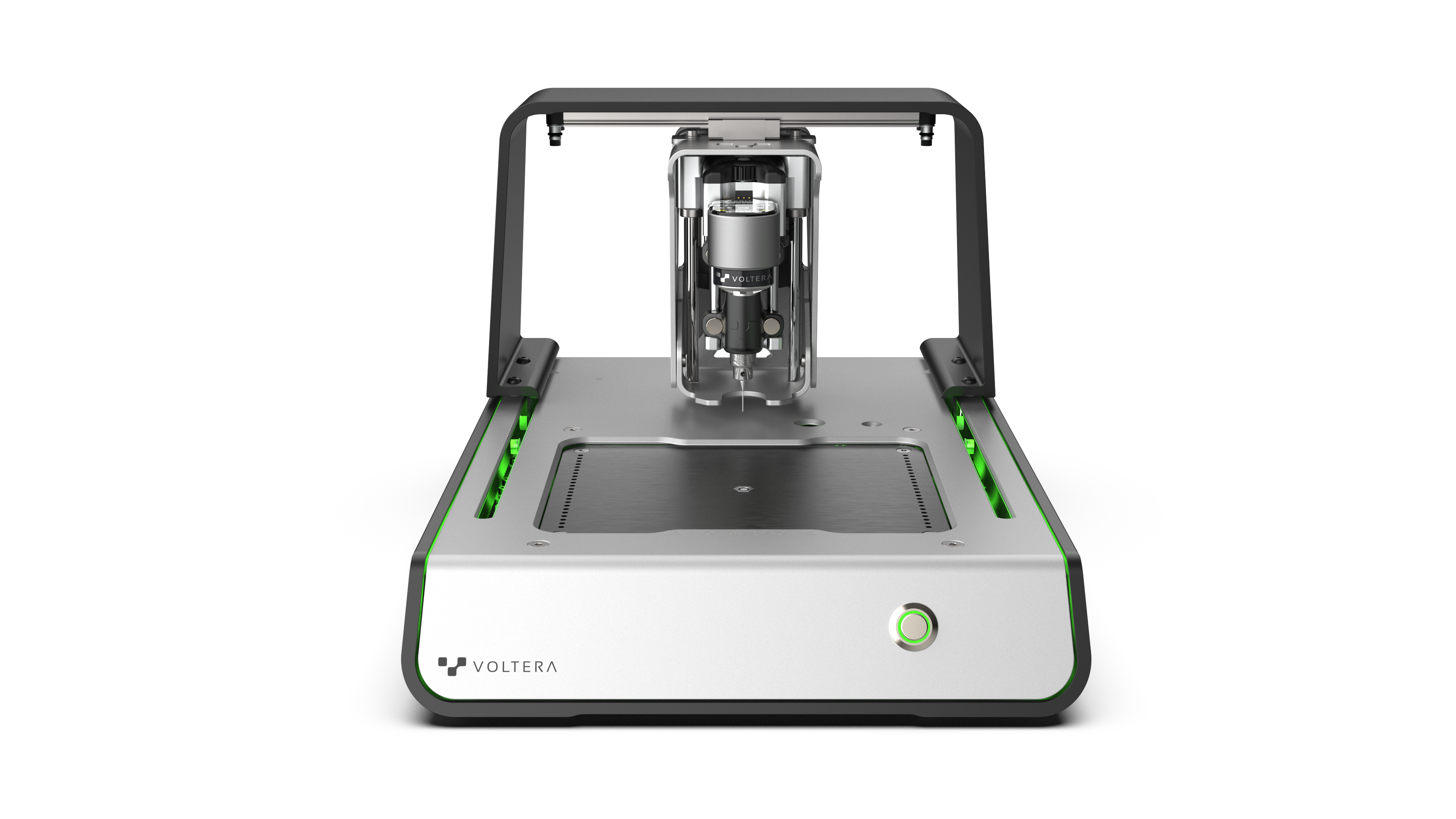

Creating double sided boards just got easier! Use the V-One drill attachment to make vias and through holes — then connect the top and bottom layers with rivets. The drill mounts onto the V-One just like the probe or dispenser but it is externally powered.

What’s included in the box:

• V-One drill attachment
• PCB drill set (metric range)
• Sacrificial layer
• Drill replacement screw set
• 1.0 mm rivet tool
• 0.4 mm rivet tool
• 1.0 mm ID copper rivets
• 0.4 mm ID copper rivets
• Punk console kit
• Safety glasses
• Plus the necessary power supply & power adapter

Warranty Options

We understand that investing in high-quality electronics is a big decision, and we want to ensure your peace of mind. That’s why we offer two warranty options for your V-One:

• Basic Warranty (Included) – 2 Years - Covers any manufacturing defects or issues that arise under normal use.
• Extended Warranty – 5 Years - For even greater peace of mind, upgrade to our extended warranty. This provides long-term protection for your investment, ensuring you’ll be able to rely on your V-One for years to come.

Availability:

For customers in Canada and USA, please purchase directly through our store. For international customers, you can find a reseller through the link below.

Find a Reseller

For U.S. customers: Most Voltera products, including V-One and NOVA, are made in Canada and are exempt from U.S. tariffs under the USMCA trade agreement. This may change without notice if import policies are updated. For more information on U.S.-imposed tariffs, visit whitehouse.gov.

Resources

Download Specifications
