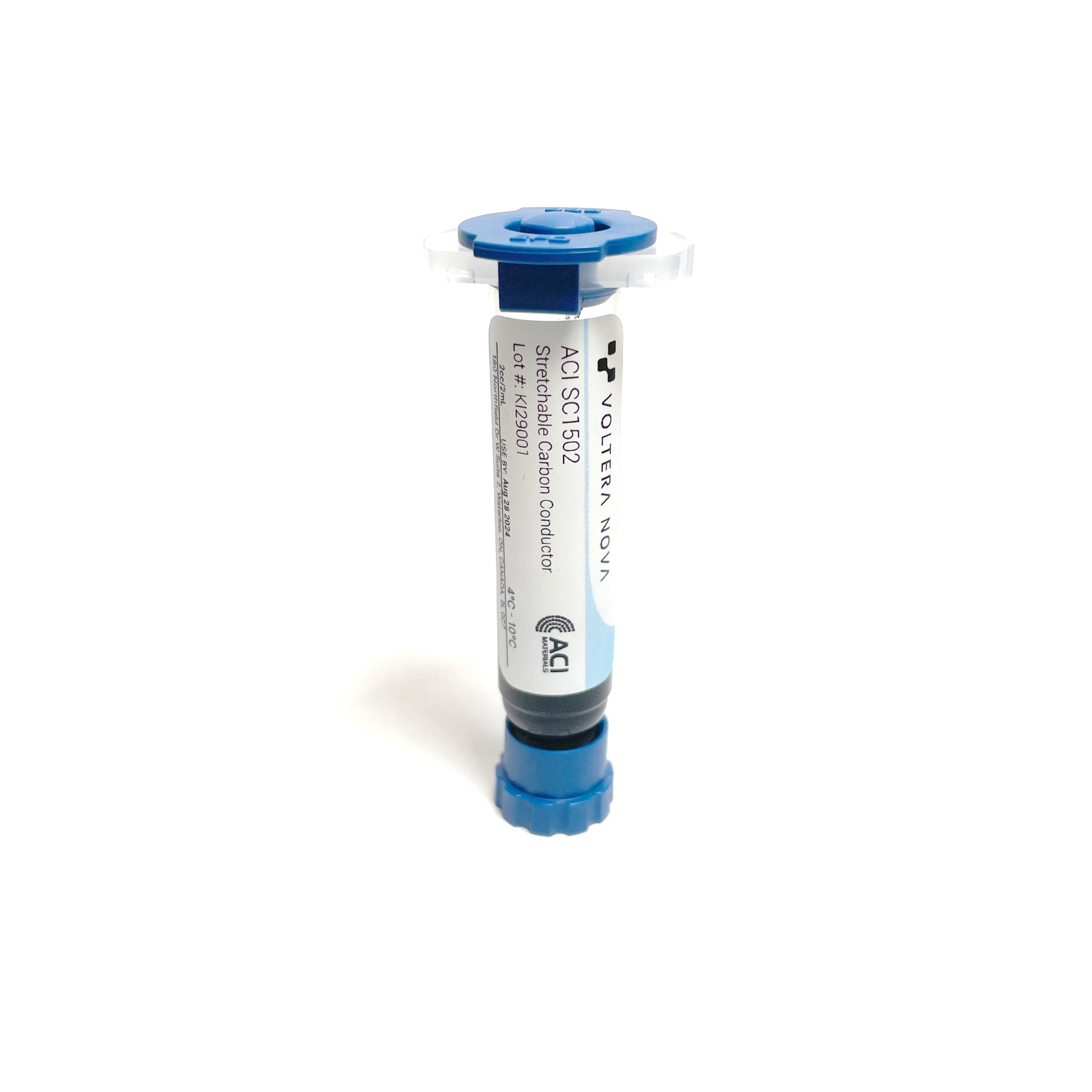

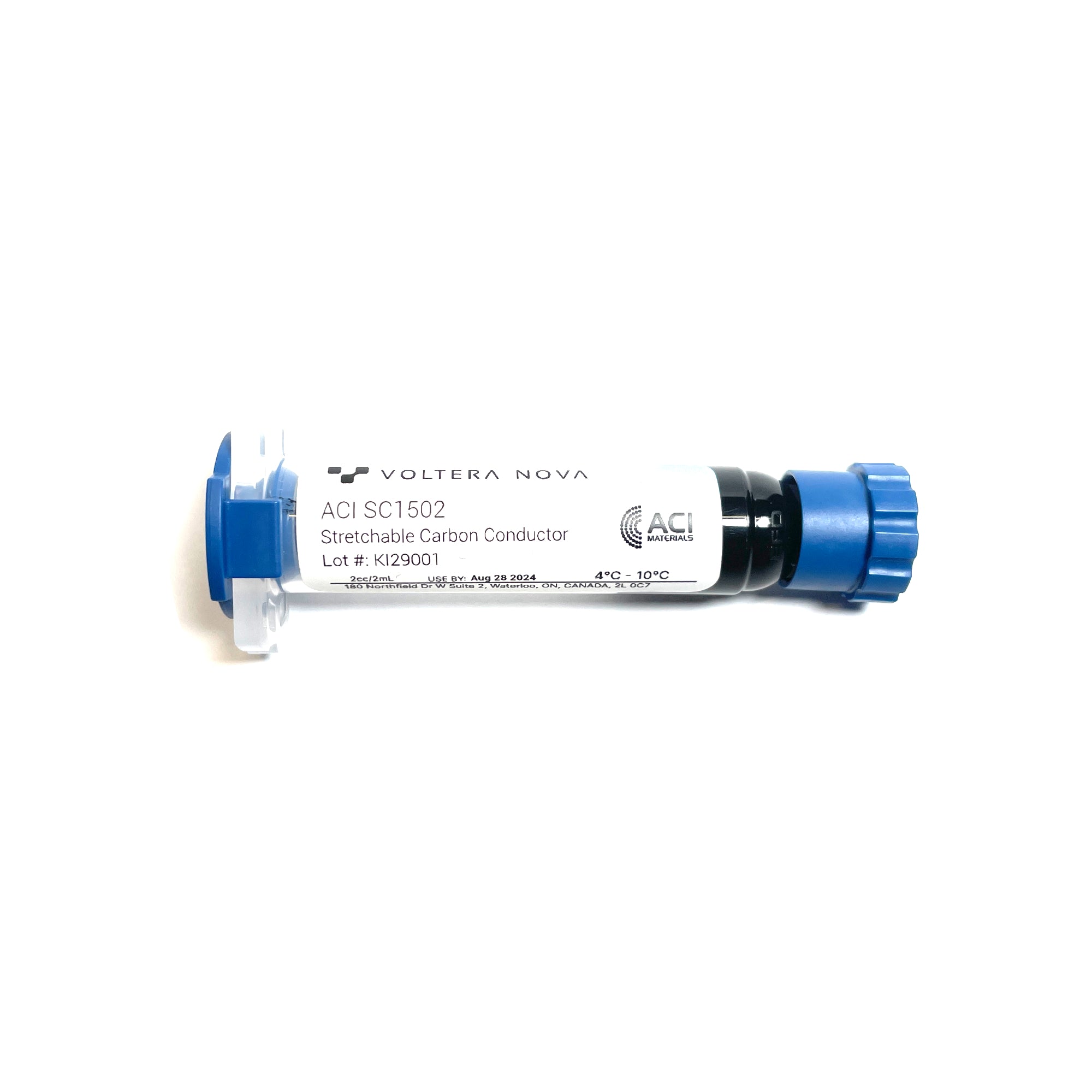

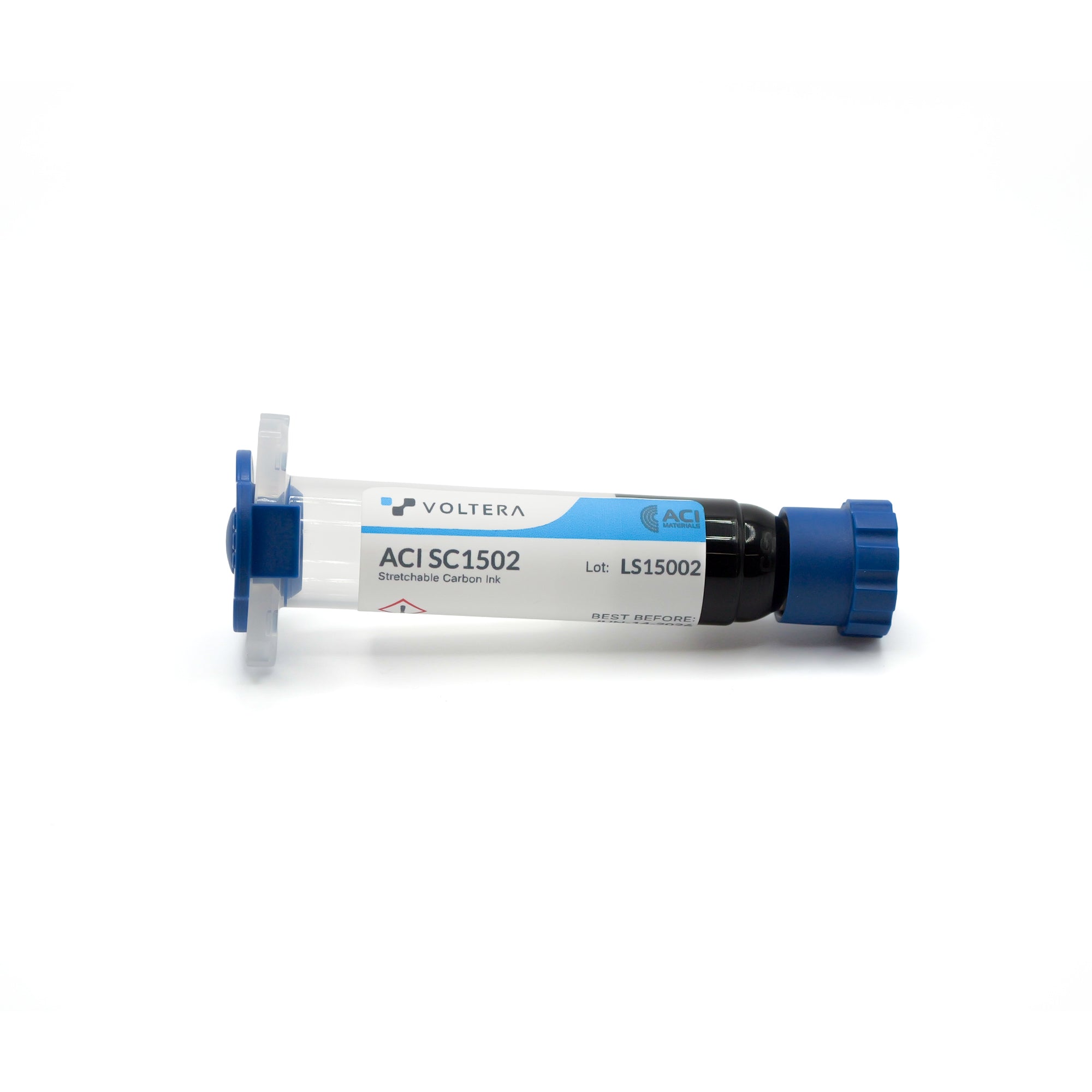

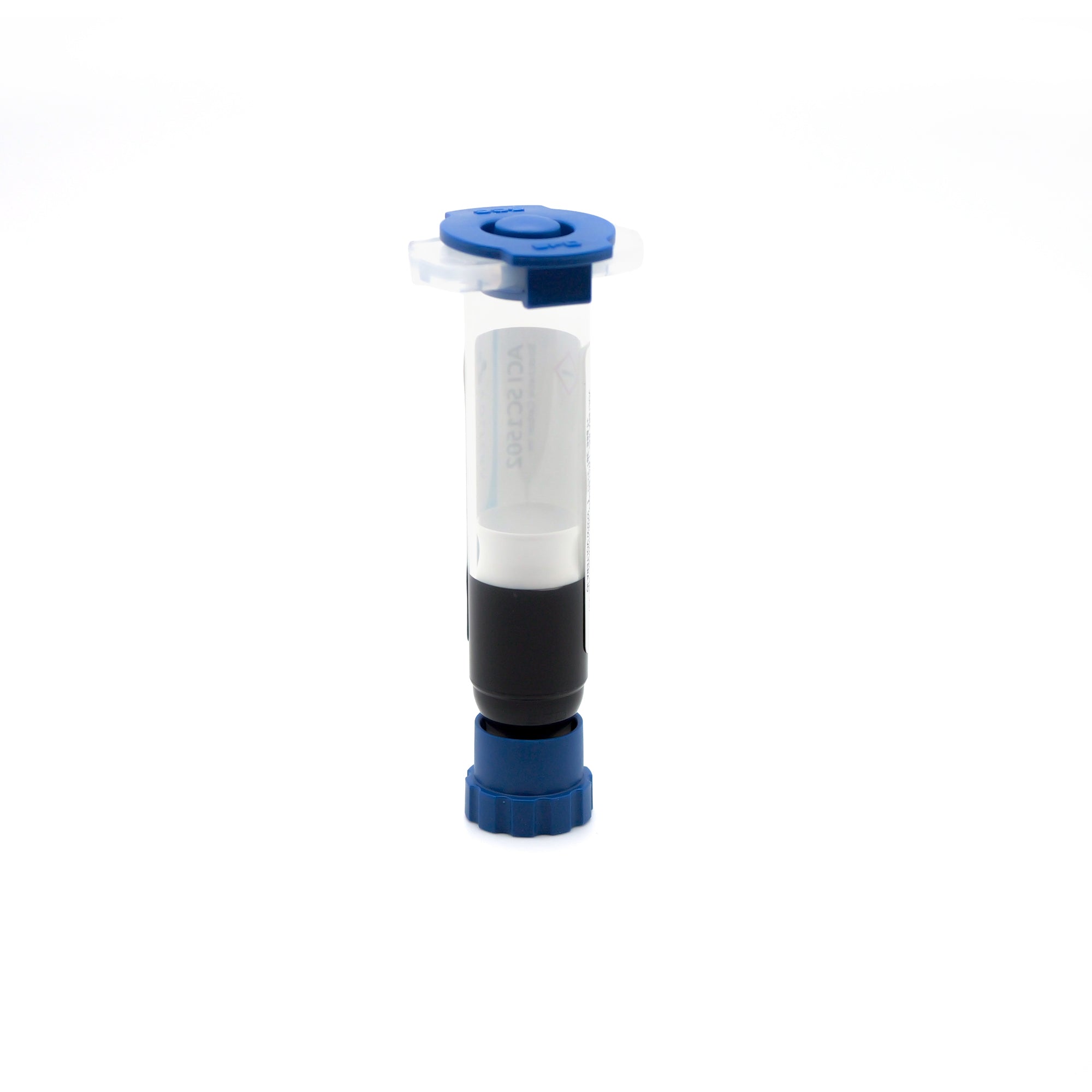

SC1502 Stretchable Carbon Ink

Description

ACI SC1502 is a carbon-filled conductor for printed circuitry and devices on elastomeric substrates. It can be dried at low temperatures to accommodate sensitive substrates and devices. After curing, the ink has good conductivity and offers excellent elongation and flexibility. It can be printed over the silver grades in sensor applications to limit silver migration.

Specifications

• Superior stretch performance on TPU offering elongation greater than 200%
• Excellent resistivity and rapid return after strain
• Excellent adhesion to TPU
• Low cure temperature (80°C) supported for temperature-sensitive materials
• Compatible with other products in ACI’s stretchable electronics platform
• Cartridge: 2 mL

Applications

• Stretchable sensors (strain gauges, bending sensors)
• Soft robotics
• E-textiles

Tips

Cartridges must be kept refrigerated, and have a shelf life of 6 months.

Resources

• Technical Datasheet
• Safety Datasheet
