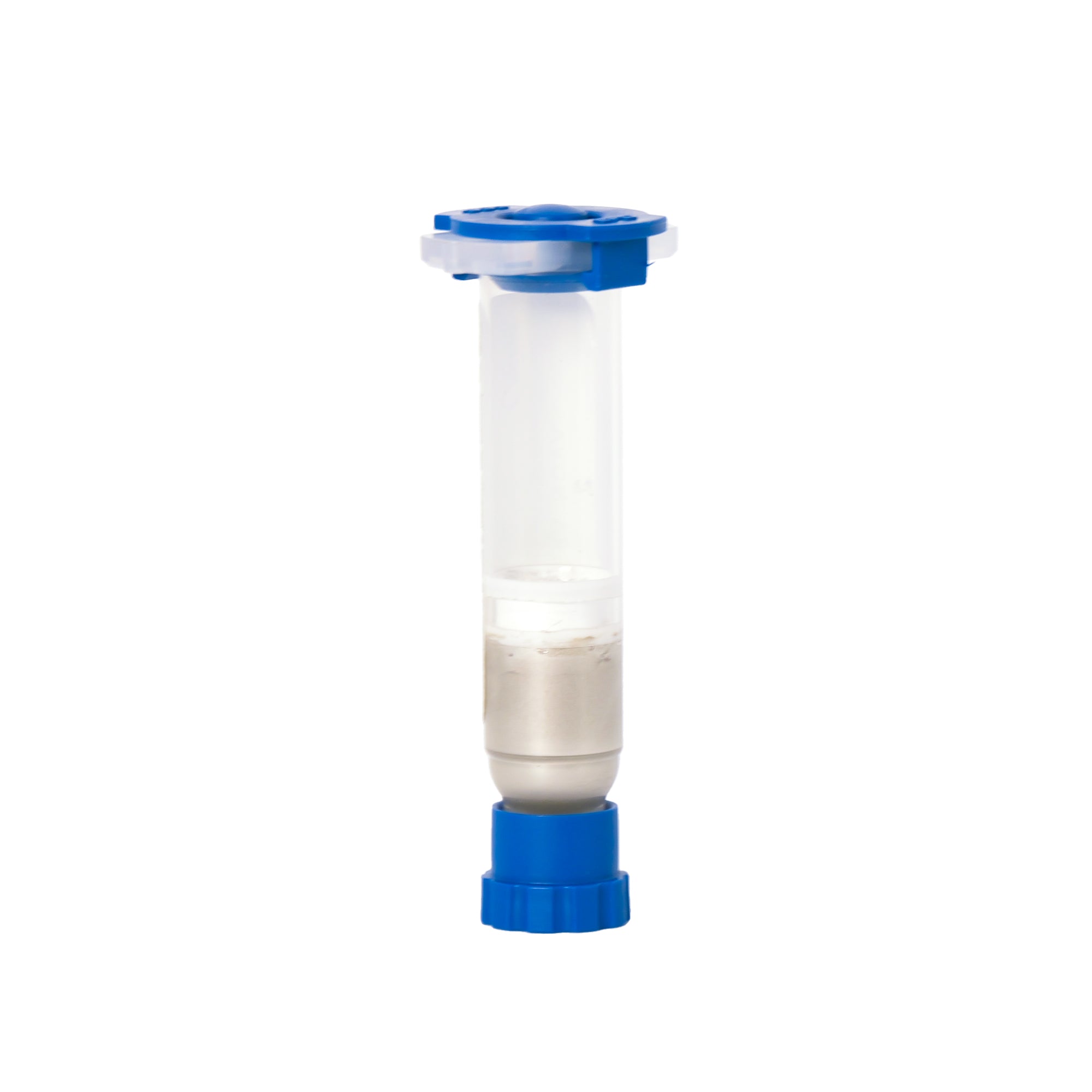

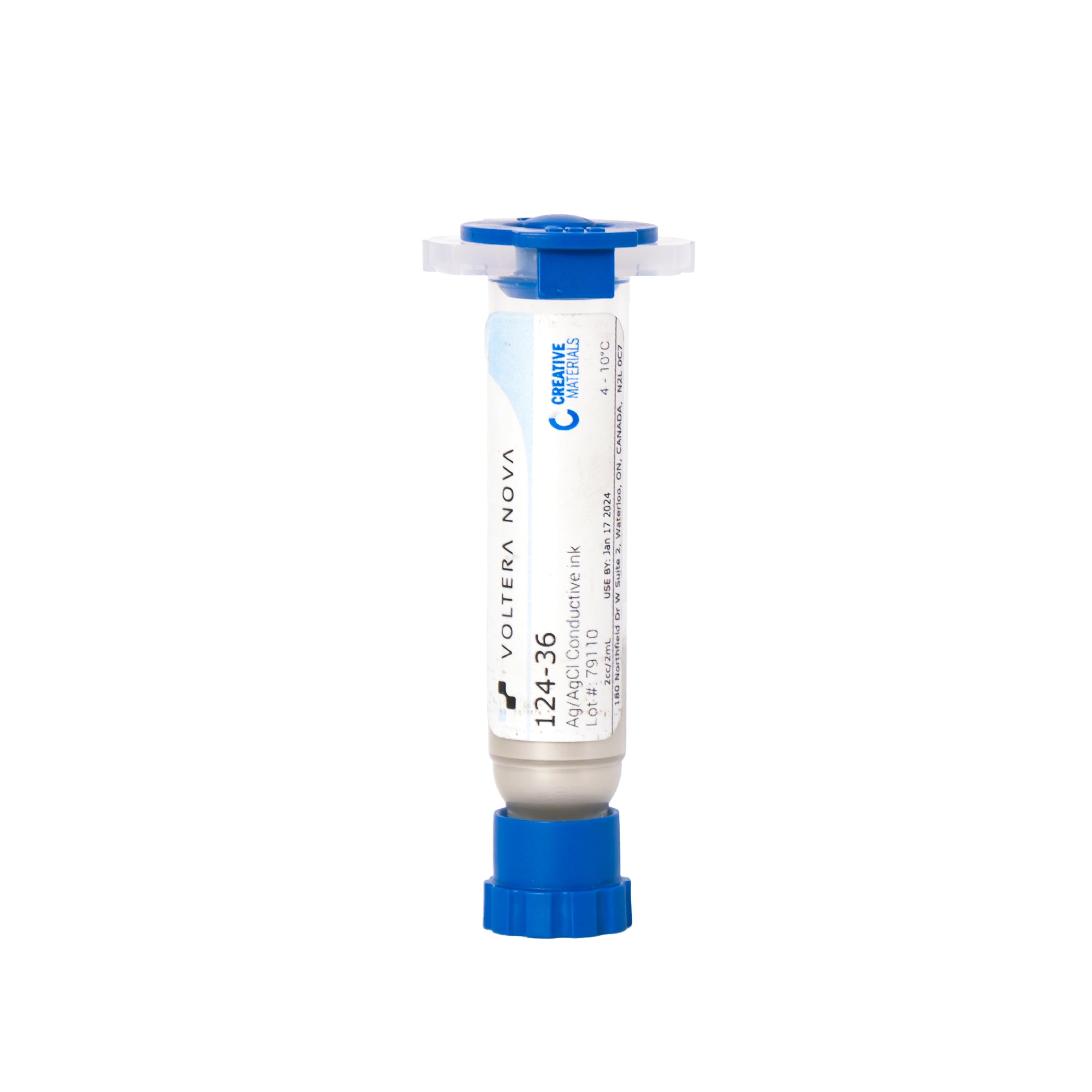

124-36 Medical Grade Ag-AgCl Conductive Ink

Description

Creative Materials 124-36 is a medical-grade electrically conductive Ag/AgCl ink, featuring excellent adhesion to Kapton, Mylar, and glass.

Specifications

• Substrate compatibility: Polyimide, Mylar, and glass
• Resistant to flexing and creasing
• Cure temperature: Between 50°C and 150°C for several minutes
• Sheet resistivity: 0.05 Ω/sq
• Store between 20°C to 25°C
• Cartridge: 2 mL

Applications

• Electrocardiogram (ECG) electrodes
• Transcutaneous electrical nerve stimulation (TENS) electrodes
• Electromagnetic interference (EMI)/radio frequency interference (RFI) shielding of polyimide flexible circuits
• Polymer thick film circuits
• Membrane switches

Resources:

• Technical Datasheet
• Safety Datasheet
