Pulse Generator Kit

Pulse Generator Kit

SKU:

Regular price $10.99 USD
Regular price Sale price $10.99 USD
Sale Sold out

Taxes, shipping, and duties not included

Made in China


Printer compatability:

  • V-One

Learn more

Description:

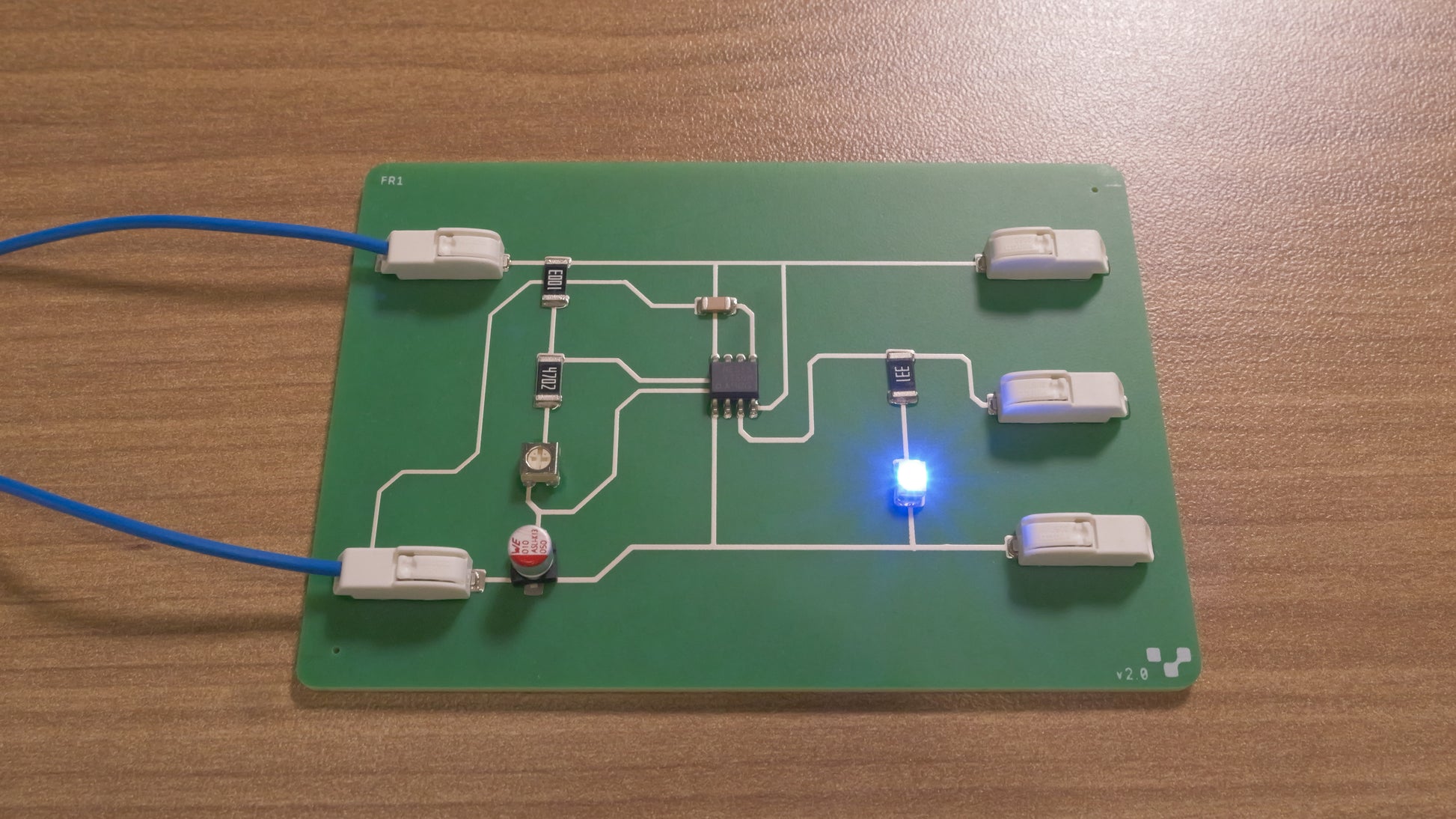

Learn about oscillators, timing circuits, and waveform generation with this hands-on project. You’ll create a pulse generator circuit that outputs an adjustable square wave using the classic 555 timer IC. A trimmer potentiometer lets you easily tune the output frequency, providing a versatile clock or control signal for driving other circuits.

Great for students, hobbyists, and educators, this kit not only demonstrates fundamental electronics concepts but also provides a practical tool to power or synchronize other digital projects. This project is ideal for learning about simple circuits and leveling up your V-One skills. The included components ensure stable operation and easy connectivity to external boards

Note: This circuit is also designed to work in series with other circuit boards. Check out the voltage regulator project  (required for the pulse generator to work) and the 99 decimal counter project (required for the pulse generator to work) for projects that connect to this board.

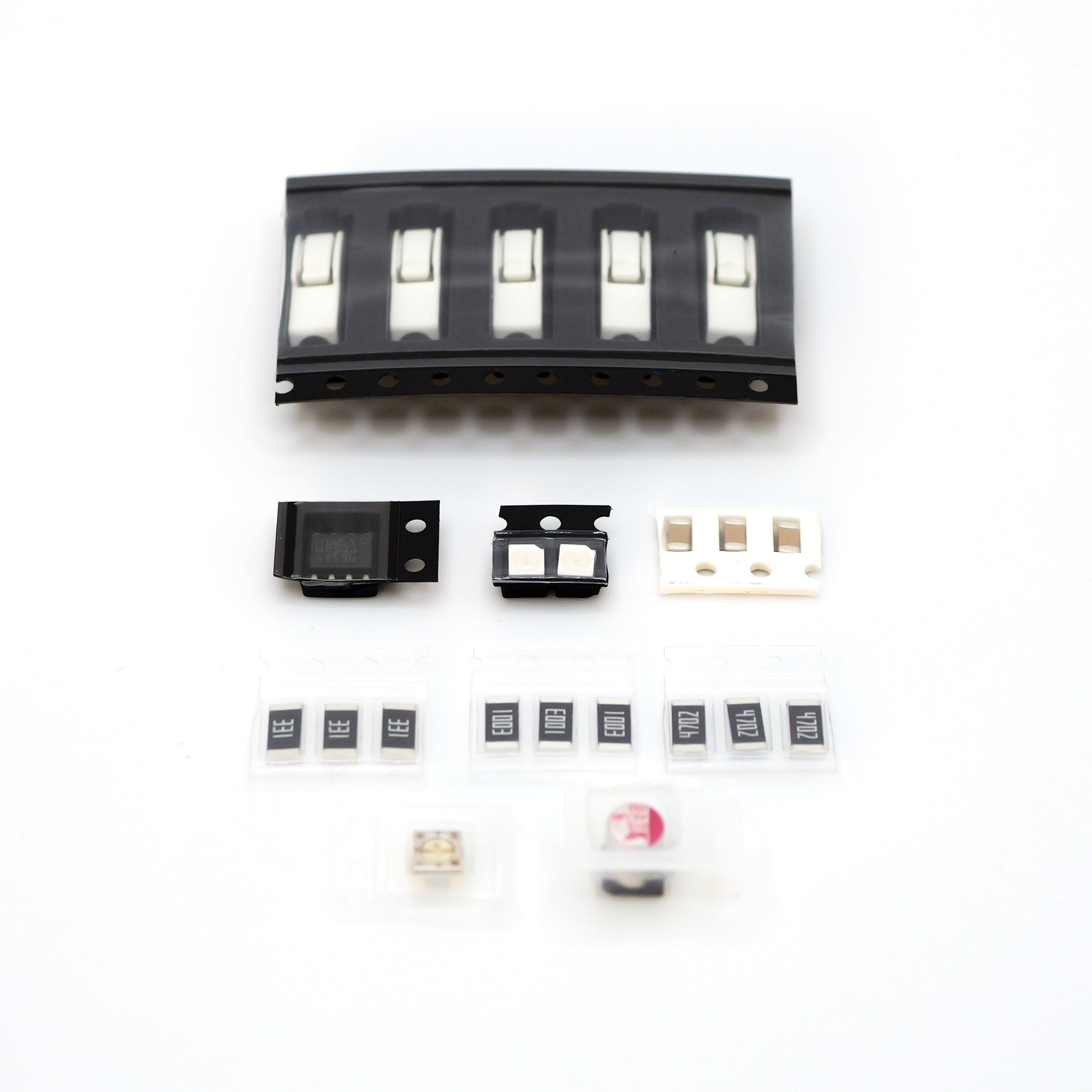

What's included:

  • 1× — NE555 IC
  • 1× — Blue LED
  • 1× — 100 kΩ resistors
  • 1× — 47 kΩ resistors
  • 1× — 330Ω resistors
  • 1× — 0.1 µF rapacitor
  • 1× — 1 MΩ trimming potentiometer
  • 1× — 1 µF capacitor
  • 5× — Wire connector

Resources:

Pulse generator tutorial
