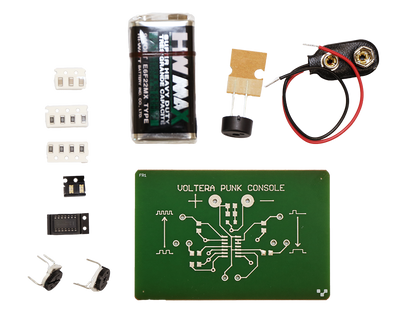

Punk Console Component Kit

Description:

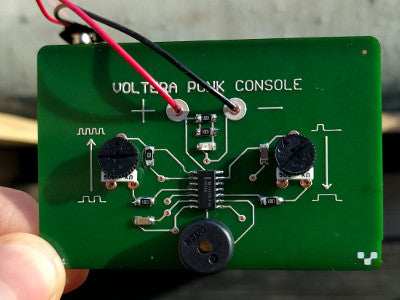

The V-One Punk Console is the component kit for an advanced circuit-building tutorial, designed to familiarize you with the V-One drill attachment. With this kit, you’ll learn to build a two-sided board. When completed, you can turn the knobs to create music.

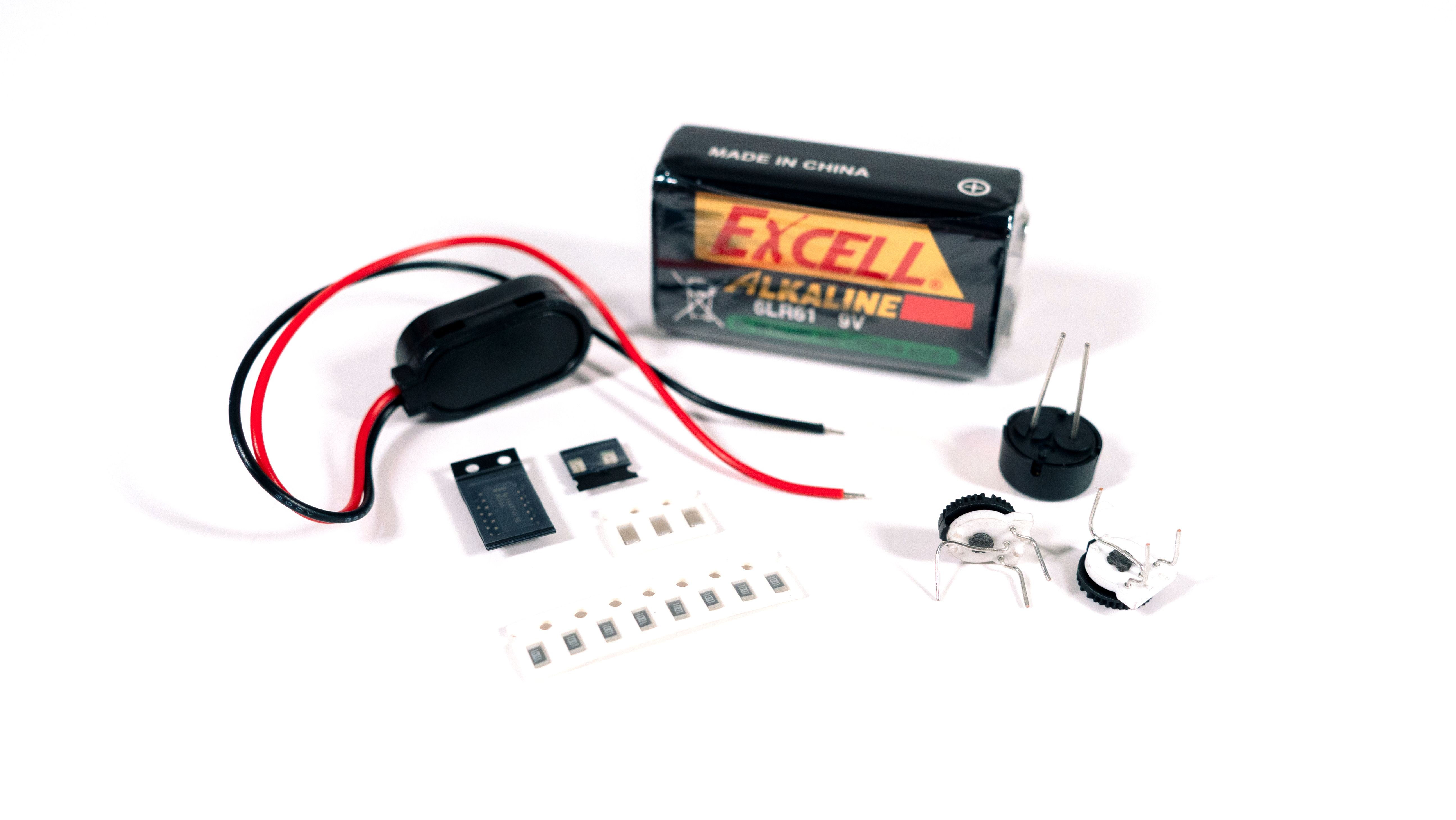

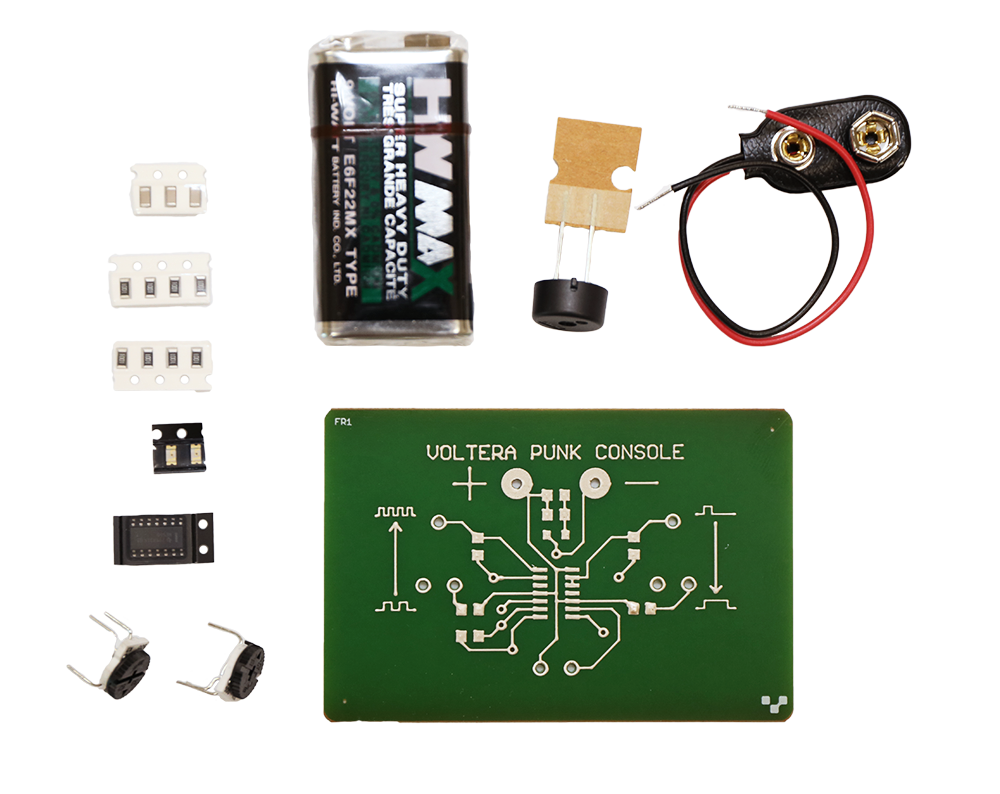

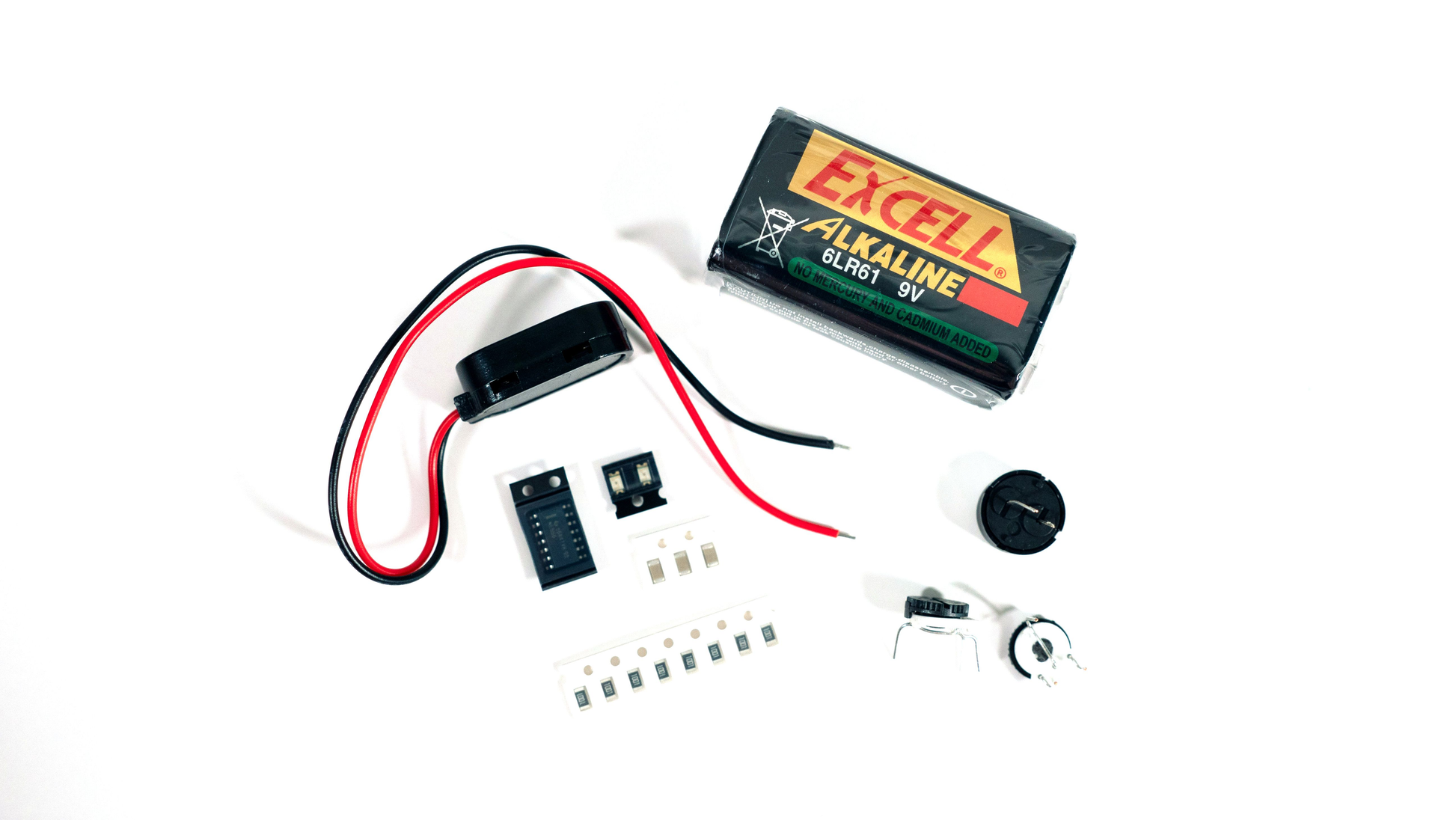

What's included:

• Green LEDs - 2
• 1K resistors - 8
• 0.01uF capacitors - 3
• 500K trimpots - 2
• 556 timer - 1
• Piezo buzzer - 1
• 9V battery - 1
• 9V battery connector - 1

Also Needed:

• A blank 2" x 3" or 3” x 4” FR1 board
• Conductor 3
• Solder Paste
• Nozzles
• Rivets & Rivet Tools
• V-One Drill

Resources:

• Punk Console Guide
