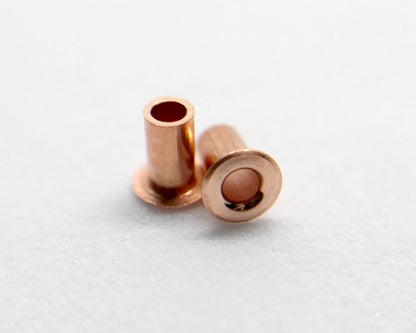

Rivets are small copper tubes used to create vias. These vias form a mechanical connection between the top and bottom layer of a PCB. To install, purchase the 1.00mm rivet tool that corresponds with the size of these copper rivets.

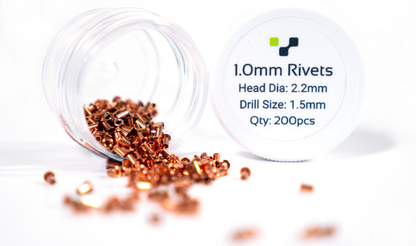

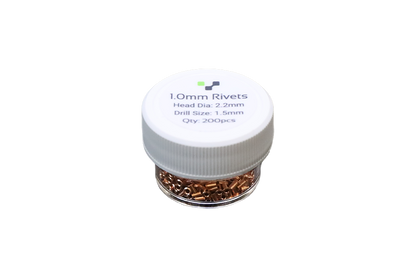

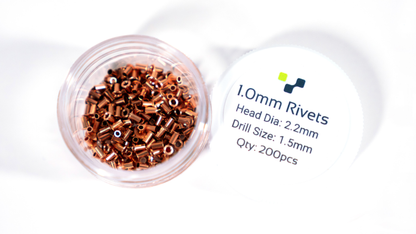

Each pack contains 200 copper rivets with the following specifications:
- Inner diameter — 1.00mm
- Head diameter — 2.20mm
- Use drill bit size — 1.50mm or 1.60mm
- Use rivet tool size — 1.00mm
Resources:Learn About Using Rivets
