Voltera Alta Pick and Place System
Early-access pricing: $9,999 $6,999 USD
Couldn't load pickup availability
Build PCBAs in hours right from your desktop.

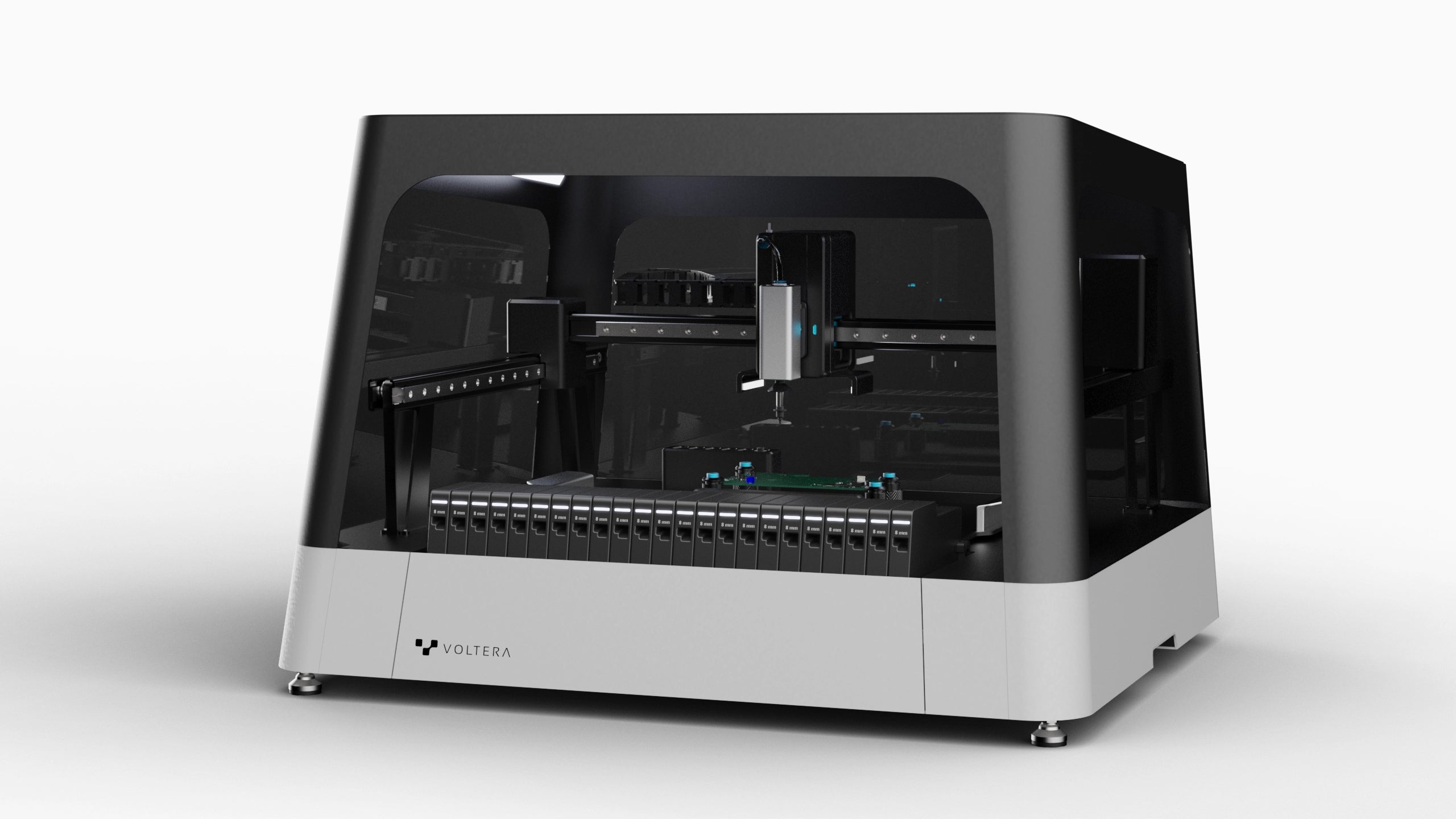

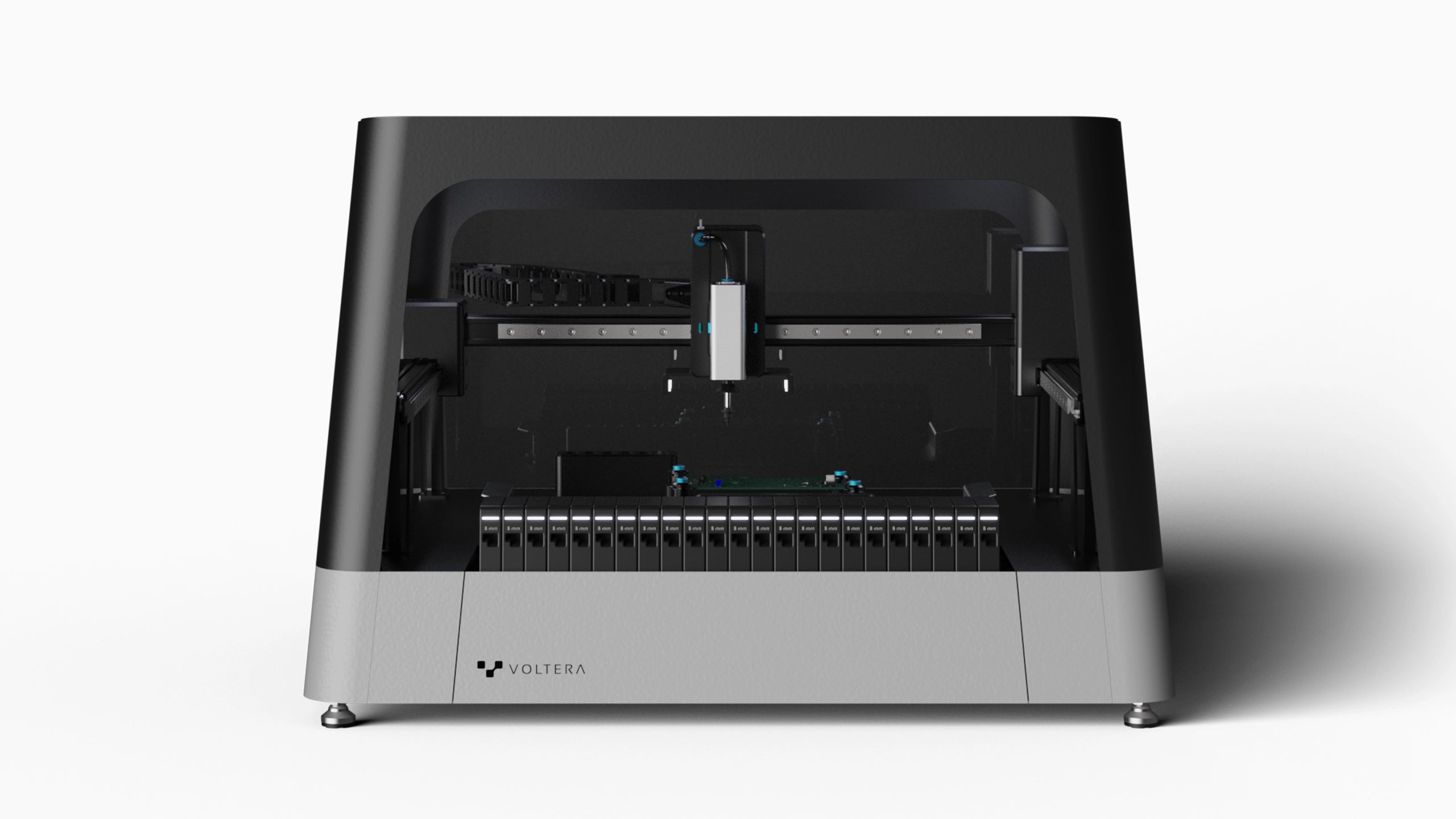

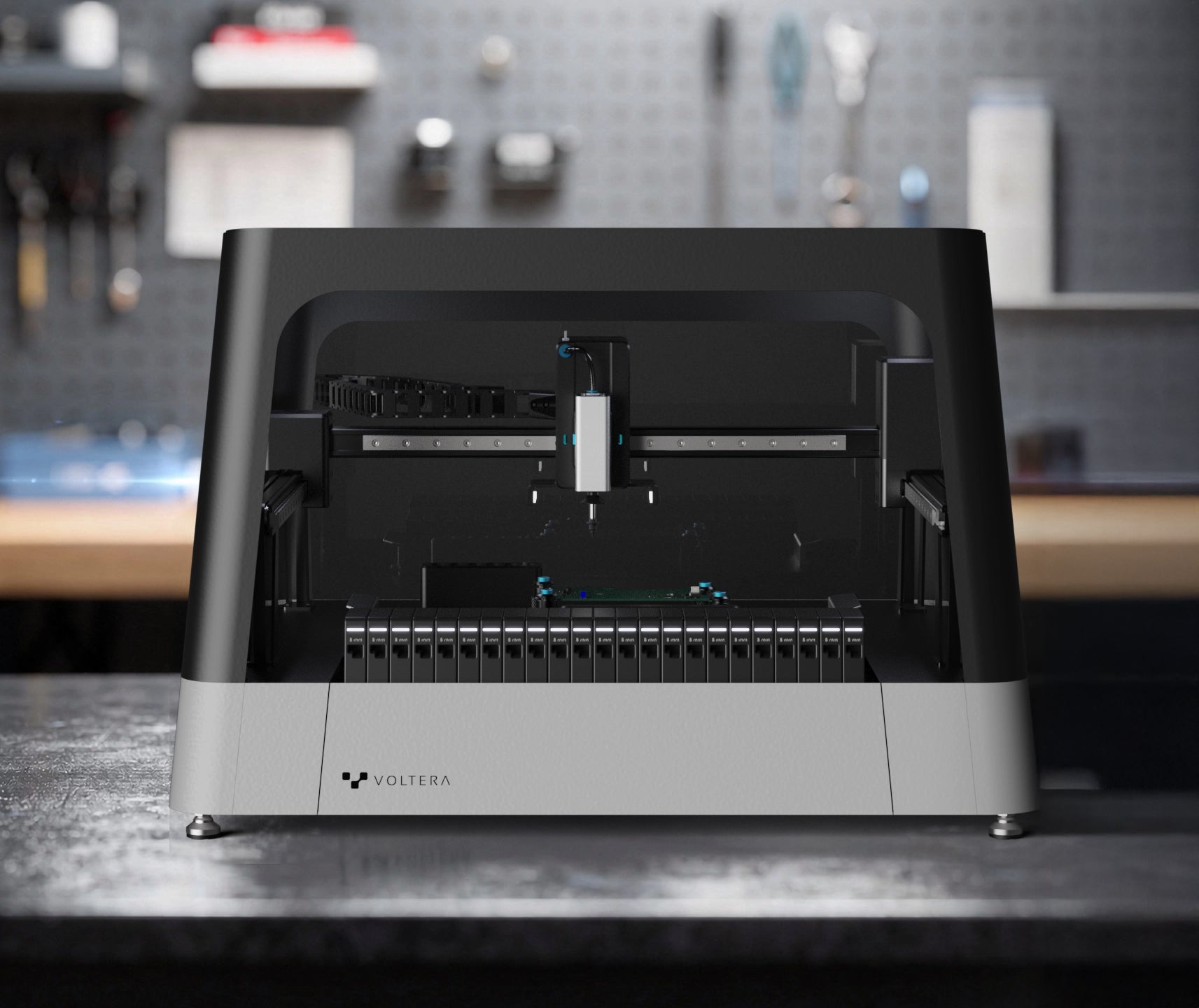

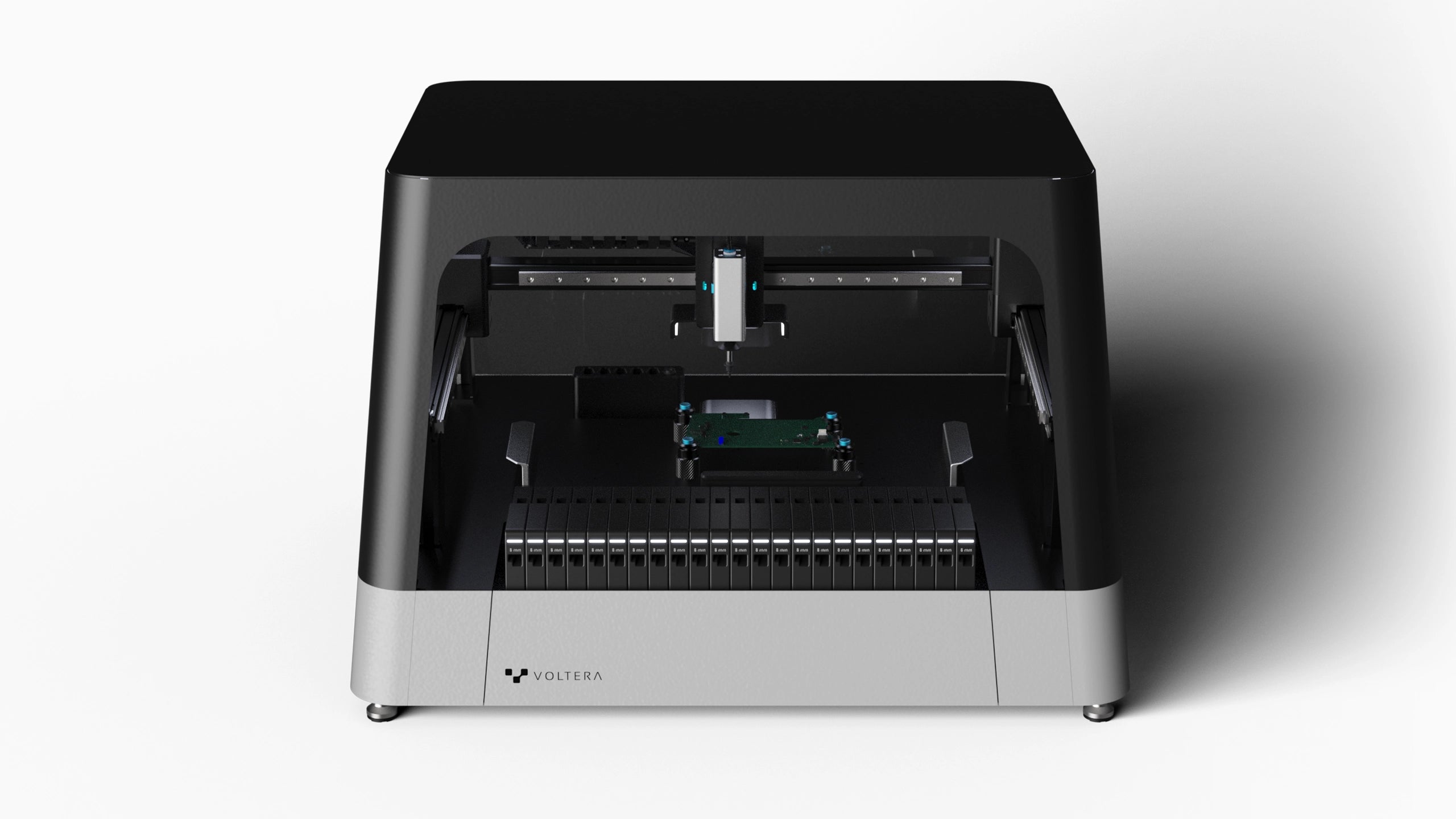

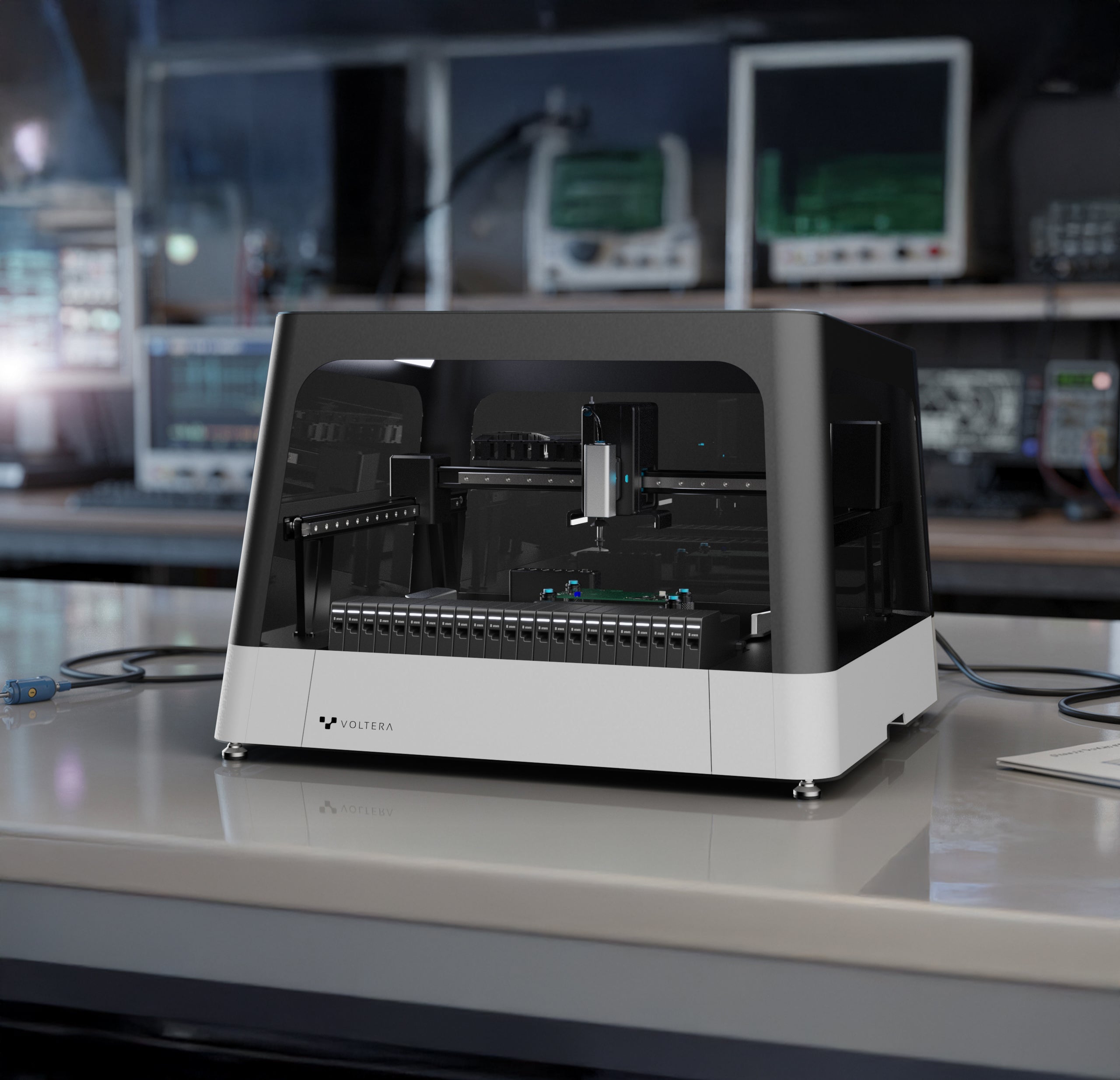

Voltera Alta is a desktop pick and place system designed for rapid, in-house SMT assembly. It automates solder paste dispensing and component placement so teams can assemble boards in a day instead of weeks. It’s an ideal prototyping platform for fast-moving hardware teams who need speed, reliability, confidence, and IP protection at every iteration.
Benefits
- Plug-and-play setup:
Alta is intuitive by design to fit seamlessly into your custom routine.
Guided workflows eliminate guesswork and make assembly easy and accessible.
- Built-in solder paste dispensing:
Eliminate stencil ordering, shipping delays, and manual paste application.
Alta precisely dispenses solder paste directly onto your PCB, enabling same-day builds and instant revisions.
- Flexible component feeding:
Load only what you need when you need it.
Alta’s optimized feeder system supports both cut tapes and loose tray components, so you’re never forced into full-reel purchases or long setup cycles. - Accurate pick and place:
Smart alignment and automated optical inspection (AOI) help catch errors early, reduce rework, and boost confidence in complex board designs, dense layouts, and diverse packages.
Early access program
We are now taking deposits for Alta, with only a limited number of units available.
With a fully refundable $100 USD, you’ll get exclusive early access to purchase Alta, and receive a 30% discount ($6,999 USD)[1] .
Timeline
- Feb 2026: Early bird units accepting deposits ($100)
- August 2026: Early bird units full payment ($6,999)
- Oct 2026: Public launch ($9,999)
- Dec 2026: Shipment
Specifications
Feeder
- Component types: Cut tape, loose
- Feeder sizes: 8, 12, and 16 mm widths
Pick and Place Module
- Minimum pitch: 0.5 mm
Cut Tape Components
- Sizes: 0402 to 5050
- Height: Up to 12 mm
- Types: QFNs, connectors, odd shaped SMD components
Loose Tray Components
- Sizes: Up to 20 × 20 mm
- Weight: Up to 30 g
- Height: Up to 15 mm
- Handles both single and double-sided boards
- Placement success: ≥ 99.8%
Board Handling
- Board thickness: 1.2 to 2.54 mm
- Board finishes: HASL, ENIG, OSP, immersion tin, immersion silver
Solder Paste Dispensing Module
- Compatible paste: Leaded, lead-free 10/10
- Particle size: T4, T5, T6, T7[2]
- Minimum pitch: 0.5 mm[2]
- Volume: Up to 5 cc cartridge
- Supports solder dots and lines
Software
- Operating system: Browser-based
- Automated optical inspection (AOI)[3]
- File formats: Gerber, CSV from Altium Designer, Cadence OrCAD/Allegro, KiCad, Autodesk Eagle, and Autodesk Fusion 360
Machine Body
- Bed size: ≈ 216 × 400 mm
- Dimensions: ≈ 619 × 540 × 420 mm
- Weight: ≈ 19 kg
- Power requirements: 100 to 240 VAC, 50 to 60 Hz
- Connectivity: Laptop
- Compatible modules: Pick and place module, solder paste dispenser
Refund policy
Alta deposits are fully refundable at any time. You may request a refund for any reason and the full deposit amount will be returned to your original payment method.
To request a refund, log in to your Voltera store account and submit a request, or contact sales@voltera.io. Refunds are typically processed within 15 days.
Voltera also reserves the right to refund deposits at its discretion, including in the event of product availability changes or the conclusion of this promotional program. Once a deposit is refunded, any early-access or priority benefits associated with the program will no longer apply.
Frequently asked questions
1. Does Alta dispense conductive ink, or print traces?
No. Alta does not dispense conductive ink or print traces.
Alta is designed for surface-mount assembly, combining solder paste dispensing and pick-and-place functionality for conventionally fabricated PCBs.
If you are looking to print conductive ink traces or perform additive PCB fabrication, V-One and NOVA are designed for those applications.
2. Does Alta have a reflow function?
No. Alta does not include reflow.
3. Do attachments from V-One or NOVA work with Alta?
No. Attachments from V-One or NOVA are not compatible with Alta. Alta is designed as a dedicated SMT assembly platform rather than an extension of those systems.
4. Do I need to buy Voltera’s proprietary solder pastes?
While Voltera solder pastes aren't required, we recommend them for the most consistent dispensing performance with your Alta.
5. Can I use third-party feeders on Alta?
No. Alta only supports Voltera feeders.
[1] The early access program is currently available to customers in Canada and the United States only. Early-access pricing and availability are subject to inventory and full payment once ordering opens. Deposits will be reviewed and Voltera retains the right to refund your deposit without notice. A member of our Sales team will contact you when purchasing becomes available.
[2] Bed size, dimensions, weight, cut tape component types, solder paste particle size, and minimum pitch are subject to change.
[3] AOI is an optional software add-on, available post-launch.
